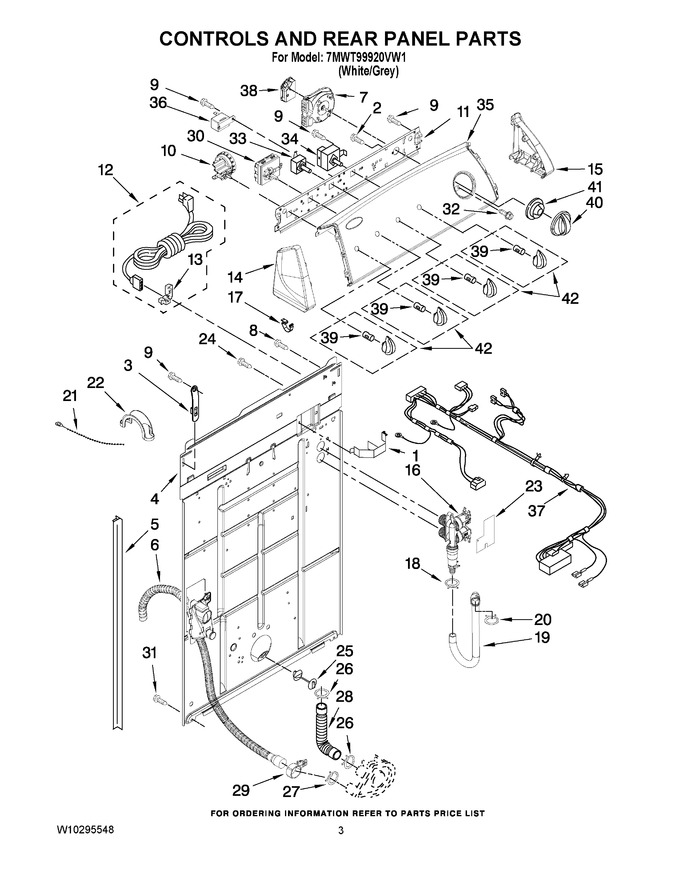

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 2 | 3400073 | Screw, Ground |
|
- | |||||
| 3 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 4 | W10194451 | Panel, Rear |
|
$ 149.72 | |||||
| 5 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 6 | WPW10189267 | Drain Hose Assembly (includes Includes Item 29) (Replaces: W10189267) |
|
$ 70.58 | |||||
| 7 | WP8577787 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 8577787) |
|
Immediately | $ 339.00 | ||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 9 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 10 | W10337781 | Switch, Water Level (Replaces: 8577843) |
|
Immediately | $ 179.75 | ||||
| 11 | 8566003 | Bracket, Control |
|
$ 64.58 | |||||
| 12 | W10115689 | Cord, Power (includes Item 13) |
|
- | |||||
| 13 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 14 | WP8565957 | Cap, End (l.h.) (includes Item 17) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 15 | WP8565954 | Cap, End (r.h.) (includes Item 17) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 16 | WPW10175893 | Valve, Water Inlet (Replaces: W10175893) |
|
Immediately | $ 218.00 | ||||
| 17 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 18 | W10185367 | Clamp, Hose |
|
$ 6.65 | |||||
| 19 | W10232966 | Hose, Valve To Tub Ring |
|
- | |||||
| 20 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 8.82 | ||||
| 21 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 22 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 23 | W10274310 | Shield, Suds |
|
- | |||||
| 24 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 26 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 27 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 28 | 285871 | Hose, Pump To Tub (includes Item 26) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 29 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 30 | WPW10184148 | Switch, Water Temperature (atc) (Replaces: W10184148) |
|
Immediately | $ 108.01 | ||||
| 31 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 32 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 8.81 | |||||
| 33 | WPW10168262 | Switch, Rotary (Replaces: 3949187) |
|
$ 136.25 | |||||
| 34 | W10163674 | Switch, Rotary |
|
- | |||||
| 35 | W10209246 | Panel, Console |
|
- | |||||
| 36 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 37 | W10214754 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- | |||||
| 38 | 8578411 | Circuit Board, Agitation Delay |
|
$ 52.84 | |||||
| 39 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 40 | W10034730 | Knob, Timer |
|
$ 25.16 | |||||
| 41 | WP8566018 | Dial, Timer (Replaces: 8566018) |
|
$ 53.59 | |||||
| 42 | W10034380 | Knob, Control |
|
$ 25.06 |
