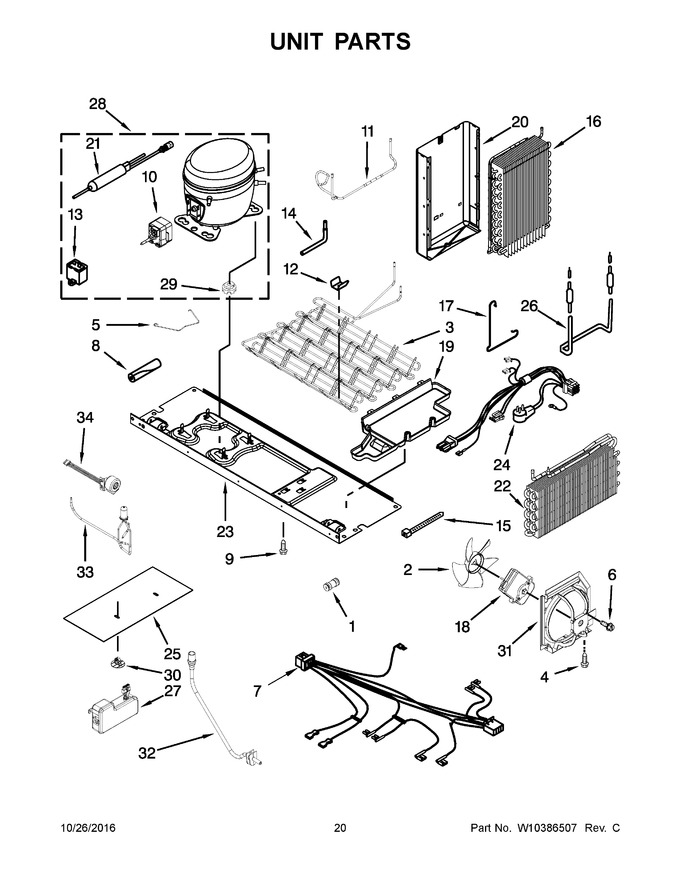

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10277958		Connector, Water   (Replaces: W10277958)			Immediately	$ 62.61
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 56.52
3	W11760073		Condenser   (Replaces: W10276899)				$ 151.92
4	WP489399		Screw   (Replaces: W10142231)				$ 6.57
5	W10204187		Strap, Bale		Appelez-nous	-
6	WPW10171469		Screw   (Replaces: W10171469)			Immediately	$ 10.45
7	W11676780		Assembly, Unit Wire   (Replaces: W10209479)				$ 69.94
8	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 19.19
9	W11544659		Screw   (Replaces: W10142294)				$ 12.92
10	WPW10197428		Device, Combination Start (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 80.29
11	WPW10223328		Tube, Suction   (Replaces: W10223328)				$ 83.57
12	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 17.44
13	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 52.97
14	2325479		Tube, Process		Appelez-nous	-
15	WP2205813		Tie, Wire   (Replaces: 2205813)				$ 7.30
16	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 321.16
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
19	W10703218		Tray, Evaporator   (Replaces: W10238584)				$ 182.06
20	W10343823		Shield, Heat				$ 61.15
21	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 27.70
22	WPW10643261		Evaporator, Dual - Rc   (Replaces: W10156654)			Immediately	$ 309.10
23	W10277704		Basepan				$ 169.00
24	WPW10242407		Cord, Power   (Replaces: W10242407)				$ 72.87
25	W10278140		Cover, Condenser (bottom)				$ 84.65
26	WPW10495967		Heater, Defrost   (Replaces: W10251470)			Immediately	$ 150.60
27	W11038857		Supply, Led Power   (Replaces: W10356137)				$ 327.52
28	WPW10466675		Compressor (also Order 876765 Tube Kit)   (Replaces: W10391109)				$ 751.08
29	WPW10169124		Grommet   (Replaces: 10835903)				$ 6.80
30	W10296661		Clip, Bottom Cover				$ 16.00
31	WPW10251467		Baffle, Air   (Replaces: W10251467)				$ 76.32
32	W11409190		Tube, Drain   (Replaces: W10223368)			Immediately	$ 58.81
33	W11590197		Assembly, Valve Body   (Replaces: W10331270)			Immediately	$ 102.70
34	WPW10364560		Coil, 3 Way Valve   (Replaces: W10364560)				$ 203.29
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	978026		Valve, Access			Immediately	$ 121.04
