View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

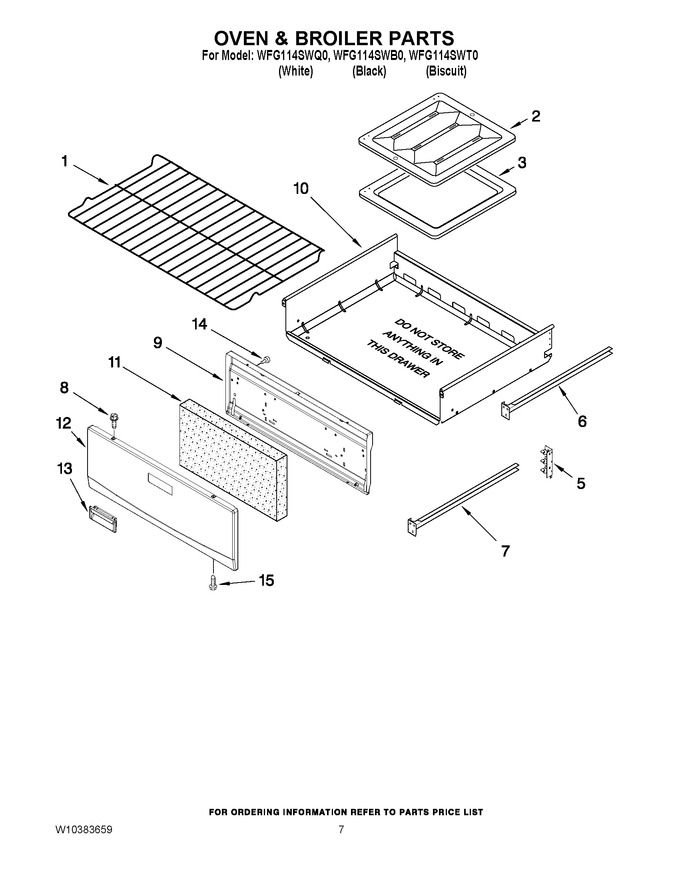

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98014136 | Rack, Oven |
|
- | |||||
| 2 | WP98003480 | Grill, Broiler (Replaces: 98003480) |
|
$ 94.18 | |||||
| 3 | WP98016005 | Pan, Broiler (Replaces: 98016005) |
|
$ 81.86 | |||||
| 5 | 98016666 | Support, Tray (right) |
|
- | |||||
| 5 | 98016664 | Support, Tray (left) |
|
- | |||||
| 6 | WPW10206639 | Guide, Fixed (right) (Replaces: W10206639) |
|
$ 15.12 | |||||
| 6 | WPW10206640 | Guide, Fixed (left) (Replaces: W10206640) |
|
$ 15.12 | |||||
| 7 | W10206642 | Guide, Mobile(2) (right) |
|
$ 20.10 | |||||
| 7 | WPW10206641 | Guide, Mobile(2) (left) (Replaces: W10206641) |
|
$ 15.12 | |||||
| 8 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 7.36 | ||||
| 8 | 3196166 | Screw (white) (Replaces: 98006727) |
|
$ 6.62 | |||||
| 8 | 98008169 | Screw (biscuit) |
|
- | |||||
| 9 | W10162118 | Liner, Door |
|
- | |||||
| 10 | 98017784 | Storage, Drawer |
|
- | |||||
| 11 | W10137230 | Insulation, Door |
|
- | |||||
| 12 | 98009343 | Panel, Door (black) |
|
- | |||||
| 12 | 98009341 | Panel, Door (biscuit) |
|
- | |||||
| 12 | 98009342 | Panel, Door (white) |
|
- | |||||
| 13 | WP3405190 | Handle, Brlr Door (black) (Replaces: 98015643) |
|
$ 67.91 | |||||
| 13 | WP3405189 | Handle, Brlr Door (biscuit) (Replaces: 98008488) |
|
$ 81.95 | |||||
| 13 | WP3405184 | Handle, Brlr Door (white) (Replaces: 98008486) |
|
$ 71.83 | |||||
| 14 | 98004052 | Bumper, Door |
|
- | |||||
| 15 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.80 |
