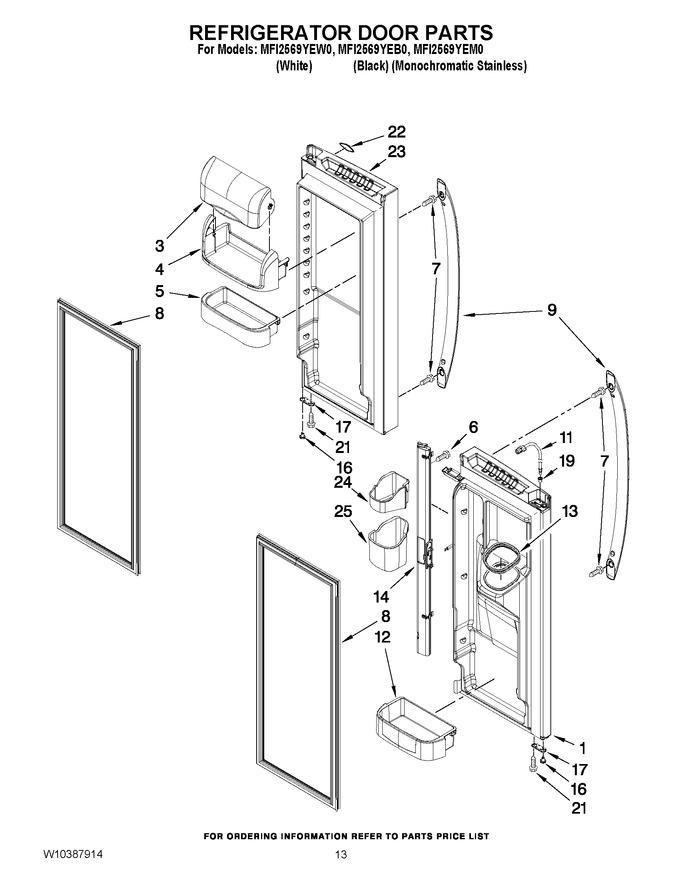

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107807S | Door, Left (stainless) |
|
- | |||||
| 1 | 13107847W | Door, Left (white) |
|
- | |||||
| 1 | 13107847B | Door, Left (black) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | WPW10371193 | Bin, Shelf (chiller Top) (Replaces: W10371193) |
|
Immediately | $ 70.97 | ||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 7 | WPW10288153 | Screw, Handle (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 8 | W11378944 | Gasket, Door (left Door) (black) (Replaces: W10435969) |
|
$ 281.39 | |||||
| 8 | W11396037 | Gasket, Door (left Door) (white) (Replaces: W10443236) |
|
$ 281.39 | |||||
| 8 | W10830055 | Gasket, Door (left Door) (stainless (right Door)) (Replaces: W10443238) |
|
Immediately | $ 255.29 | ||||
| 9 | W10252285 | Door Handle (black) |
|
- | |||||
| 9 | W10252288A | Door Handle (stainless) (Replaces: W10252288) |
|
$ 116.87 | |||||
| 9 | WPW10252284A | Door Handle (white) (Replaces: W10252284) |
|
$ 68.65 | |||||
| 11 | W10275942 | Waterline, Door |
|
Immediately | $ 108.24 | ||||
| 12 | WPW10289489 | Bin, Shelf (gallon) (Replaces: W10289489) |
|
Immediately | $ 79.73 | ||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 12665101SP) |
|
Immediately | $ 29.48 | ||||
| 14 | WP12722813AP | Mullion, Door (apollo Grey) (Replaces: 12722813AP) |
|
$ 306.80 | |||||
| 14 | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 307.87 | |||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: 12722813W) |
|
$ 307.14 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 81.29 | |||||
| 16 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.34 | ||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 13.28 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 62.36 | |||||
| 17 | W11703060 | Stop, Door Stainless (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 22 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 23 | 13107810S | Door, Right (stainless) |
|
- | |||||
| 23 | 13107854W | Door, Right (white) |
|
- | |||||
| 23 | 13107854B | Door, Right (black) |
|
- | |||||
| 24 | WP12977402 | Bucket, Upper (Replaces: 12977402) |
|
$ 71.64 | |||||
| 25 | WP12977502 | Bucket, Lower (Replaces: 12977502) |
|
$ 76.10 |
