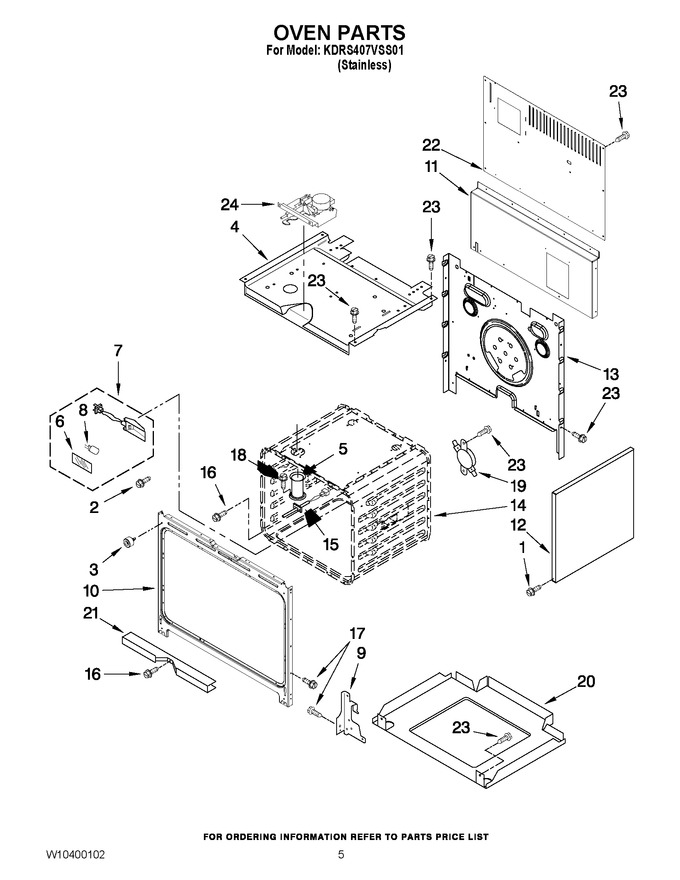

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 2 | 4449748 | Screw |
|
$ 12.81 | |||||
| 3 | W10105790 | Assembly, Bumper |
|
$ 6.67 | |||||
| 4 | W10267897 | Top, Chassis |
|
- | |||||
| 5 | W10288061 | Tube, Vent |
|
$ 104.35 | |||||
| 6 | W10169756 | Lens, Light |
|
$ 37.97 | |||||
| 7 | WPW10307114 | Oven Light Assy (Replaces: W10307114) |
|
Immediately | $ 104.41 | ||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 46.52 | ||||
| 9 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 118.57 | ||||
| 9 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 114.93 | ||||
| 10 | W10160866 | Frame, Front |
|
- | |||||
| 11 | W10145399 | Panel, Back Bottom |
|
- | |||||
| 12 | W10269206 | Side, Chassis (left) |
|
$ 211.75 | |||||
| 12 | W10269205 | Side, Chassis (right) |
|
$ 211.98 | |||||
| 13 | W10235550 | Back, Chassis |
|
- | |||||
| 14 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 94.50 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 19 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 121.07 | ||||
| 20 | W10235537 | Base, Chassis |
|
- | |||||
| 21 | W11368870 | Retainer, Gasket (Replaces: W10157511) |
|
$ 22.42 | |||||
| 22 | W10269207 | Panel, Back Top |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 24 | W11029221 | Latch, Door (Replaces: W10195935) |
|
Immediately | $ 294.89 | ||||
| NI | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 112.37 | |||||
| NI | W10160806 | Insulation, Back |
|
- |
