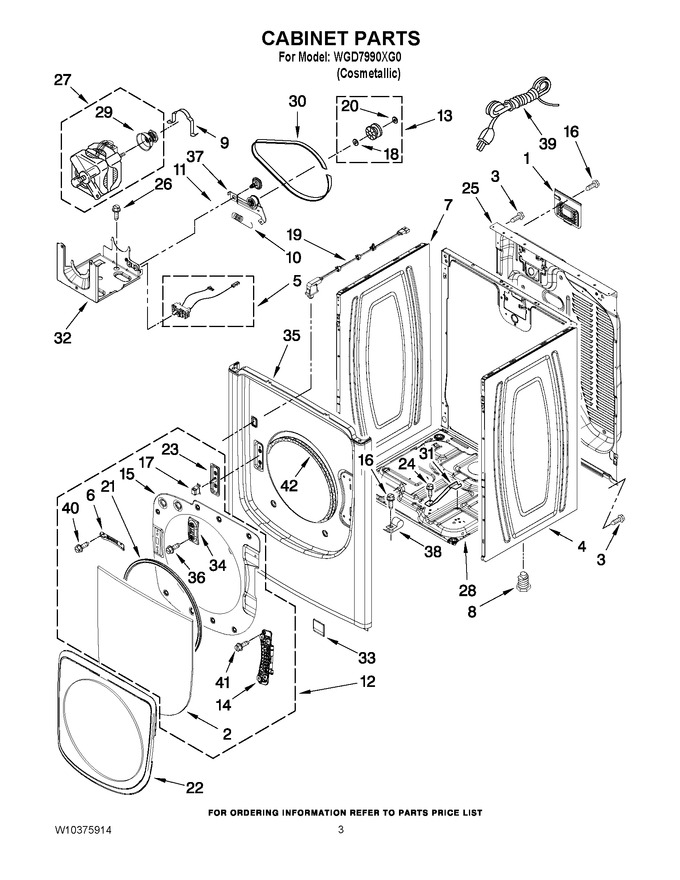

02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10307147 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 2 | W11310036 | Glass, Door (Replaces: W10208417) |
|
$ 212.45 | |||||
| 3 | W10850756 | Screw, 10-32 X 5/8 (ground) (Replaces: 8533974) |
|
$ 7.38 | |||||
| 4 | W10285809 | Panel, Side (r.h.) |
|
- | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10246525) |
|
Immediately | $ 32.45 | ||||
| 6 | W10208252 | Bracket, Glass |
|
- | |||||
| 7 | W10304624 | Panel, Side (l.h.) |
|
- | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | W10285791 | Door Assembly Complete |
|
- | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | W10285801 | Hinge, Door Assembly |
|
- | |||||
| 15 | W10285792 | Door Inner |
|
- | |||||
| 16 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 17 | W11240283 | Door Catch Assembly (Replaces: W10208401) |
|
Immediately | $ 26.50 | ||||
| 18 | WPW10121334 | Washer, Thrust (Replaces: W10121334) |
|
Immediately | $ 6.80 | ||||
| 19 | WPW10338189 | Door Switch Assembly (Replaces: W10338189) |
|
$ 75.38 | |||||
| 20 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 9.14 | ||||
| 21 | W11310035 | Seal, Glass (Replaces: W10329710) |
|
Immediately | $ 88.61 | ||||
| 22 | W10285780 | Door Outer Assembly |
|
$ 418.92 | |||||
| 23 | W10278915 | Strike, Door |
|
$ 30.75 | |||||
| 24 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 25 | W10285822 | Panel, Rear |
|
- | |||||
| 26 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 27 | 279787 | Motor Assembly 60 Hz. (broken Belt (Replaces: 8538263) |
|
Immediately | $ 222.14 | ||||
| 28 | W11215531 | Base, Cabinet Switch) (Replaces: 8565046) |
|
$ 328.82 | |||||
| 29 | W10837625 | Pulley 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 11.49 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 85.36 | ||||
| 33 | W10301055 | Plug, Front Panel |
|
$ 13.51 | |||||
| 34 | W10278916 | Bezel, Door Switch |
|
- | |||||
| 35 | W10285788 | Panel, Front (include, Item. 42 ) |
|
- | |||||
| 36 | W10301601 | Screw |
|
- | |||||
| 37 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 32.20 | ||||
| 38 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 39 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 91.71 | |||||
| 40 | W10317717 | Screw, 10-16 X 1/2 |
|
- | |||||
| 41 | W10301602 | Screw, M6-1.0 X 15 |
|
- | |||||
| 42 | WP3387242 | Seal-drum Front (Replaces: 3387242) |
|
Immediately | $ 29.24 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
