SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

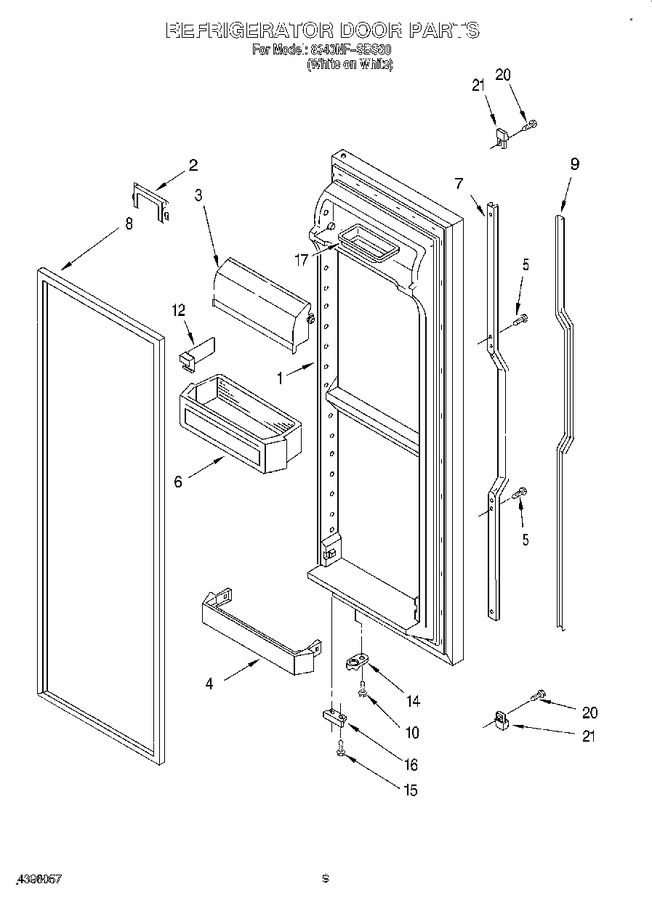

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194509W		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 78.61
5	WP489463		Screw   (Replaces: 489463)				$ 8.25
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.95
7	2194777W		Retainer, Insert		Appelez-nous	-
8	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
9	2173825		Insert, Handle		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
12	2195496		Divider, Bin		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2195950		Bracket, Door Stop				$ 5.84
17	2165792		Tray, Butter		Appelez-nous	-
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
21	2194778W		End Cap, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
