01 - Cabinet
02 - Refrigerator Liner
03 - Freezer Liner
04 - Air Flow

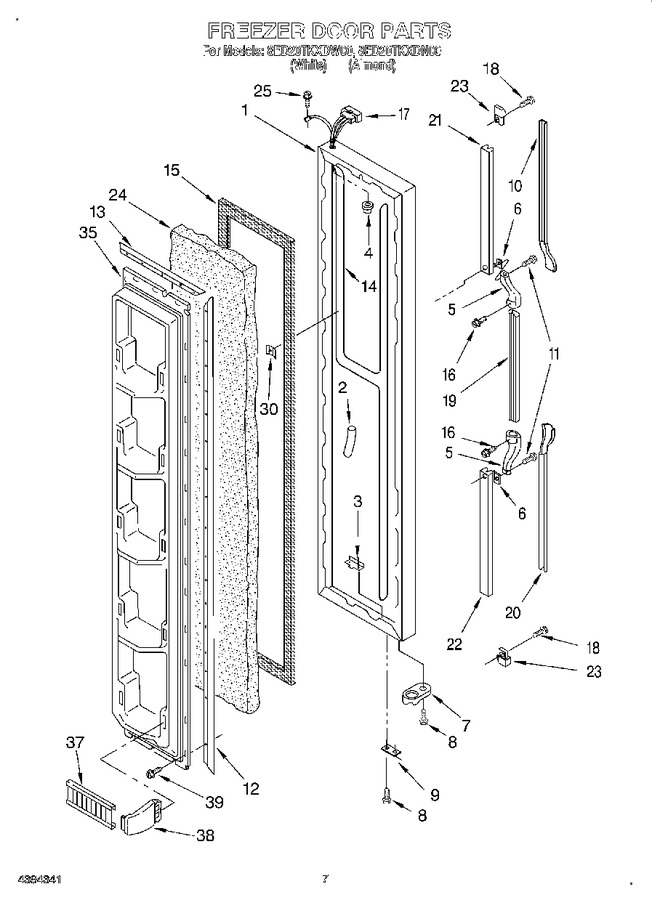

05 - Freezer Door
06 - Refrigerator Door
07 - Unit
08 - Control, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4362049 | Freezer, Door Panel (white) |
|
- | |||||
| 1 | 4362050 | Freezer, Door Panel (almond (also Order Item 24)) |
|
- | |||||
| 2 | 1119059 | Tube, Door Wiring |
|
- | |||||
| 3 | 2155335 | Tap, Plate |
|
- | |||||
| 4 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 5 | 1119359 | End Cap (2) |
|
- | |||||
| 6 | 935075 | Shim |
|
- | |||||
| 7 | 4318165 | Door Closer, Upper Cam (Replaces: 2155312) |
|
Immediately | $ 29.74 | ||||
| 8 | WP999367 | Screw (Replaces: 489367) |
|
$ 8.56 | |||||
| 9 | 2155332 | Bracket, Door Stop |
|
- | |||||
| 10 | 1119367 | Insert, Top (white) |
|
- | |||||
| 10 | 1119369 | Insert, Top (almond) |
|
- | |||||
| 11 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 12 | 1117766 | Gasket Retainer, Side (2) |
|
$ 36.55 | |||||
| 13 | 1117767 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 14 | 2165271 | Heater, Door |
|
- | |||||
| 15 | 2188405A | Door Gasket, Magnetic (Replaces: 1129267) |
|
$ 368.63 | |||||
| 16 | 489022 | Screw |
|
- | |||||
| 17 | 2162419 | Connector |
|
- | |||||
| 18 | 489075 | Screw |
|
- | |||||
| 19 | 943079 | Handle, Center (almond) |
|
- | |||||
| 19 | 1124713 | Handle, Center (white) |
|
- | |||||
| 20 | 1119363 | Insert, Bottom (almond) |
|
- | |||||
| 20 | 1119361 | Insert, Bottom (white) |
|
- | |||||
| 21 | 1119366 | Insert Retainer (top) |
|
- | |||||
| 22 | 1119360 | Insert Retainer (bottom) |
|
- | |||||
| 23 | 2156220 | End Cap (2) |
|
- | |||||
| 24 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 25 | WP488234 | Screw (Replaces: 489422) |
|
$ 7.08 | |||||
| 30 | 941242 | Screw Anchor |
|
- | |||||
| 35 | 1129241 | Panel, Interior Door |
|
- | |||||
| 37 | 2170585 | Trim, Door Shelf |
|
- | |||||
| 38 | WP2196100 | Support Trim End (Replaces: 1110719) |
|
Immediately | $ 9.09 | ||||
| 39 | WP489069 | Screw, (28) (Replaces: 489101) |
|
Immediately | $ 8.40 |
