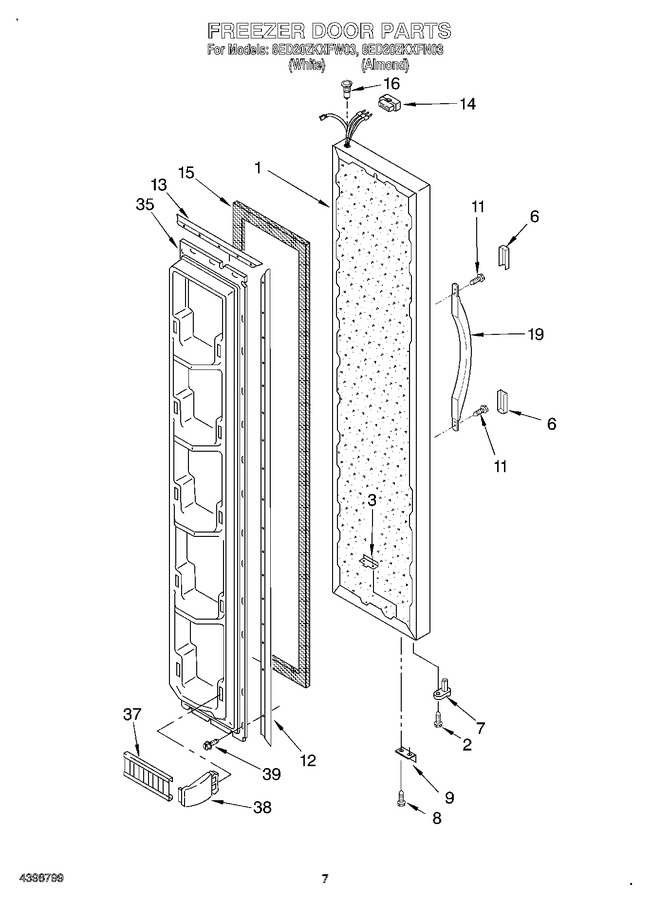

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2197804W | Freezer, Door Panel (white) |
|
- | |||||
| 1 | 2197804N | Freezer, Door Panel (almond) |
|
- | |||||
| 2 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 3 | 2196135 | Tap, Plate |
|
$ 18.96 | |||||
| 6 | 2193353N | Endcap, Handle (2) (almond) |
|
- | |||||
| 6 | WP2193353W | Endcap, Handle (2) (white) (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 7 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 7.20 | ||||
| 8 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 9 | 2195950 | Bracket, Door Stop |
|
$ 5.84 | |||||
| 11 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 12 | 1117766 | Gasket Retainer, Side (2) |
|
$ 36.55 | |||||
| 13 | 1117767 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 14 | 2162419 | Connector |
|
- | |||||
| 15 | 2188405A | Door Gasket, Magnetic (Replaces: 1129267) |
|
$ 368.63 | |||||
| 16 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 19 | 2186649W | Handle, Center (white) |
|
$ 70.49 | |||||
| 19 | 2186649N | Handle, Center (almond) |
|
- | |||||
| 35 | 2196141 | Interior, Door Panel |
|
- | |||||
| 37 | 2195921 | Trim, Door Shelf |
|
$ 23.06 | |||||
| 38 | WP2196100 | Support Trim End (Replaces: 2196100) |
|
Immediately | $ 9.09 | ||||
| 39 | WP489069 | Screw, (28) (Replaces: 489101) |
|
Immediately | $ 8.40 |
