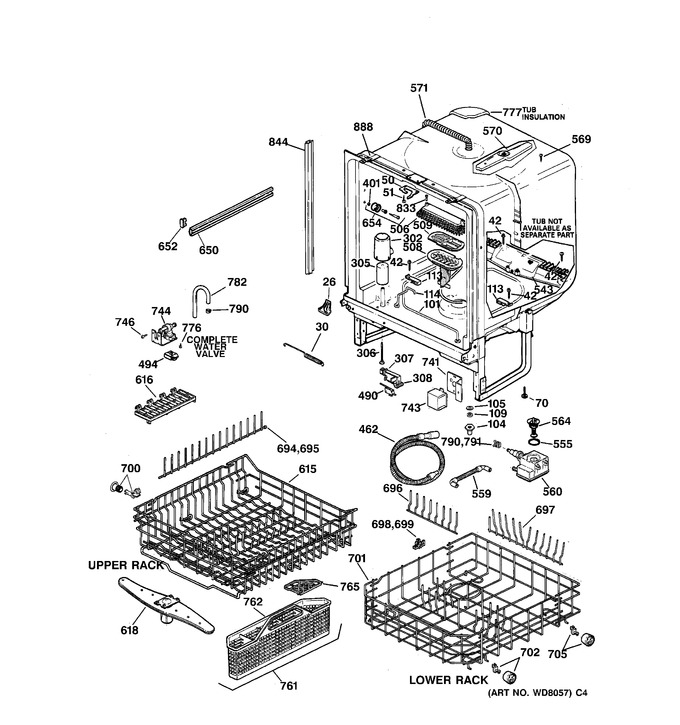

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WZ04X0376		Scr 10-16x3/4 #8 Hx Sstl		Appelez-nous	-
50	WG04F04725		Keeper Latch   (Replaces: WD13X67)				$ 10.01
51	WZ02X0492		Scr 10-24x1/2 Tt Trr S		Appelez-nous	-
307	WD12X10023		Bracket Flood Switch		Appelez-nous	-
462	WG04F01563		Hose Drain   (Replaces: WD24X10014)			Immediately	$ 61.30
490	WG04F01056		Switch Flood   (Replaces: WD21X479)				$ 12.86
506	WD12X10040		Cover Inlet		Appelez-nous	-
508	WD22X10021		Filter Sump		Appelez-nous	-
509	WD22X10020		Cover Sump		Appelez-nous	-
543	WD22X149		Filter Frame Asm		Appelez-nous	-
559	WD24X10015		Hose Chamber				$ 6.70
560	WD22X10018		Body Valve & Check Asm		Appelez-nous	-
564	DW10018		Piston & Nut Asm   (Replaces: WD24X220)			Immediately	$ 12.08
570	WW03F00159		Sprayarm Asm 3rd Level   (Replaces: WD28X10043)			Immediately	$ 170.53
571	WD24X214		Hose Power Shower		Appelez-nous	-
615	WD28X10036		Rack Upper & Roller Asm		Appelez-nous	-
616	WD28X297		Shelf Cup		Appelez-nous	-
618	WD22X10022		Sprayarm Asm Mid Lvl		Appelez-nous	-
650	WG04L00503		Rack Slide   (Replaces: WD30X98)				$ 12.86
694	WD28X10047		Comb Flex 15 Tine		Appelez-nous	-
695	WD28X10046		Comb Flex 15 Tine		Appelez-nous	-
697	WD28X10045		Comb Flex 7 Tine		Appelez-nous	-
698	WD28X10018		Retainer Comb Left		Appelez-nous	-
698	WD28X334		Comb Ranger		Appelez-nous	-
699	WD28X10019		Retainer Comb Right		Appelez-nous	-
701	WG04A05238		Rack Lower & Roller Asm   (Replaces: WD28X10054)				$ 188.85
741	WD12X447		Bracket J-box		Appelez-nous	-
743	WG02L01023		Cover Juction Box   (Replaces: WD12X448)				$ 18.59
744	WG04F01376		Water Valve Inlet   (Replaces: WD15X10003)			Immediately	$ 126.19
761	WD28X10052		Basket Silverware Asm		Appelez-nous	-
762	WG01L00261		Basket Silverware Long   (Replaces: WD28X10048)				$ 75.33
765	WD28X10051		Basket Lid		Appelez-nous	-
776	WZ05X0222		Scr 10-32 T Hex 7/16 S		Appelez-nous	-
782	WG04F00460		Water Inlet Hose   (Replaces: WD18X202)				$ 12.86
790	WH1X2036		Clamp Hose		Appelez-nous	-
888	WD35X200		Bracket Counter		Appelez-nous	-
