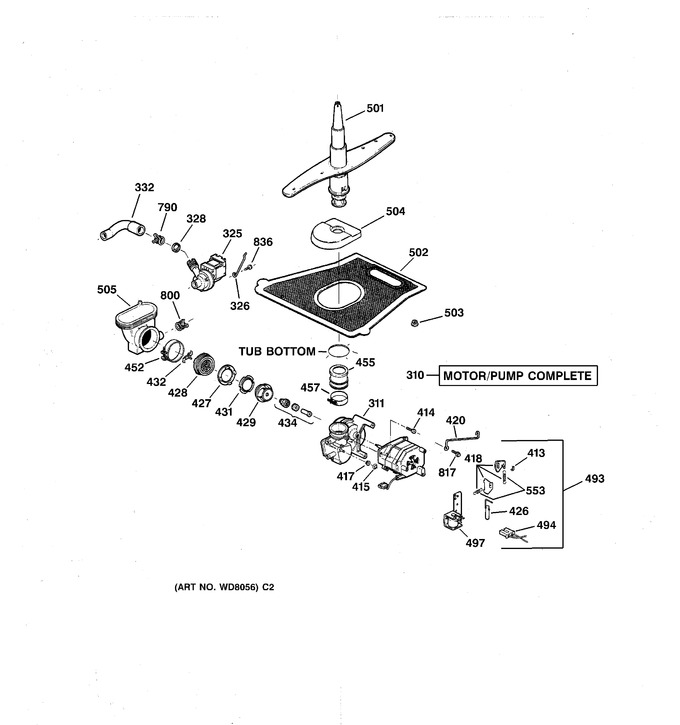

3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
310	WD26X10011		Mechanism S/s Asm		Appelez-nous	-
311	WD19X10021		Housing Pump Asm		Appelez-nous	-
325	WD19X10015		Pump				$ 70.65
332	WD24X10006		Hose Dual Pump		Appelez-nous	-
418	WG04A00385		Gate Valve Arm Kit   (Replaces: WD35X192)				$ 14.29
429	WD19X10014		Impeller Asm		Appelez-nous	-
434	WD19X10002		Pump Seal Asm		Appelez-nous	-
455	WG04F01561		Connector Pump Asm   (Replaces: WD18X214)			Immediately	$ 55.83
493	WG04F00993		Kit Solenoid Asm   (Replaces: WD21X10060)			Immediately	$ 89.13
497	WG04F00993		Bracket & Solenoid   (Replaces: WD21X10071)			Immediately	$ 89.13
501	WG04F01015		Sprayarm Asm   (Replaces: WD22X10017)				$ 76.28
502	WD22X10019		Gasket & Filter Asm		Appelez-nous	-
504	WD22X10023		Service Dome,coarse Fltr		Appelez-nous	-
505	WD18X215		Sump Inlet		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
836	WG04A01370		Scr 8-18 Ab Ihwp 7/8 S   (Replaces: WH02X10002)				$ 3.57
