SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelves & Drawers


5 - Compartment Separator Parts


6 - Unit Parts

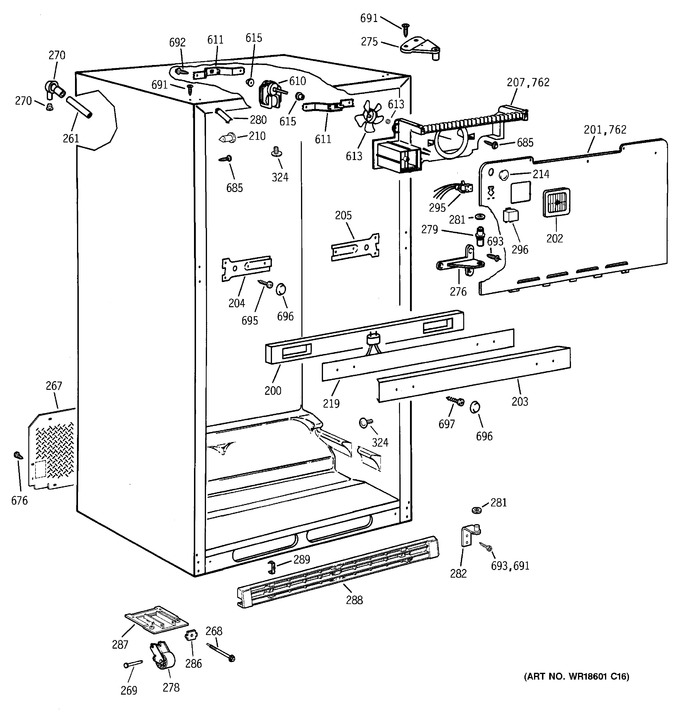

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
200	WR14X356		Foam Strip Mullion		Appelez-nous	-
201	WR17X2269		Cover Evap Asm		Appelez-nous	-
202	WR2X8629		Grille Ice Serv Snap-in		Appelez-nous	-
203	WR17X4198		Mullion Crosspiece Ad		Appelez-nous	-
204	WR2X7823		Bracket Mullion Lh		Appelez-nous	-
205	WR2X7822		Bracket Mullion Rh		Appelez-nous	-
207	WR17X2990		Plenum		Appelez-nous	-
210	WR2X6261		Grommet Shelf Fz		Appelez-nous	-
214	WR2X7148		Plug Button		Appelez-nous	-
219	WR51X358		Heater Mullion		Appelez-nous	-
261	WR2X6087		Tube Water Fill		Appelez-nous	-
267	WR82X10044		Cover Access Asm		Appelez-nous	-
268	WR1X1816		Screw Mobility		Appelez-nous	-
269	WR1X1803		Key Pivot		Appelez-nous	-
270	WG03L01693		Plug Button   (Replaces: WR2X8247)				$ 4.20
270	WR2X9153		Grommet Water Fill		Appelez-nous	-
275	WR13X713		Hinge Top Pin Asm Ad		Appelez-nous	-
276	WR13X712		Hinge Center Asm Ad		Appelez-nous	-
278	WR2X8842		Mobility Front Asm		Appelez-nous	-
279	WR13X587		Pin Hinge Ctr		Appelez-nous	-
280	WR2X7657		Cap Corner O.c. Ad		Appelez-nous	-
281	WG03L08792		Washer Hinge Brown   (Replaces: WR01X10146)			Immediately	$ 3.57
282	WR13X649		Hinge Btm Asm Ad		Appelez-nous	-
286	WR1X1815		Leveling Nut		Appelez-nous	-
287	WR2X9168		Gusset		Appelez-nous	-
288	WR74X223		Grille Base Asm Ad		Appelez-nous	-
289	WR2X7646		Clip Base Grille		Appelez-nous	-
295	WR23X315		Receptacle Icemaker		Appelez-nous	-
296	WR2X8444		Cover Plug I M		Appelez-nous	-
324	WG03F01629		Plug Button Sm Wh   (Replaces: WR2X7051)				$ 4.78
324	WR2X7069		Plug Button Lg Wh		Appelez-nous	-
610	GEFM		Motor Evap Fan   (Replaces: WR60X190)			Immediately	$ 106.65
611	WR2X7664		Bracket Evap Fan		Appelez-nous	-
613	WR60X123		Blade Evap Fan		Appelez-nous	-
613	WR2X3198		Ring Compression		Appelez-nous	-
615	WR2X7391		Grommet Evap Fan		Appelez-nous	-
676	WZ04X0263		Scr 10-16 Abh Ws 1/2s		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
691	WR1X2139		Screw 12-24 Ad		Appelez-nous	-
692	WZ04X0416		Screw		Appelez-nous	-
693	WR1X2137		Screw 12-24 Ad		Appelez-nous	-
695	WR01X10060		Scr 12-24tt Bht .700 Sc		Appelez-nous	-
696	WR02X10172		Cover Screw Ad		Appelez-nous	-
697	WR01X10063		Scr 12-24tt Bht .900(ad)		Appelez-nous	-
762	WR14X313		Foam Strip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
