SELECT A DIAGRAM

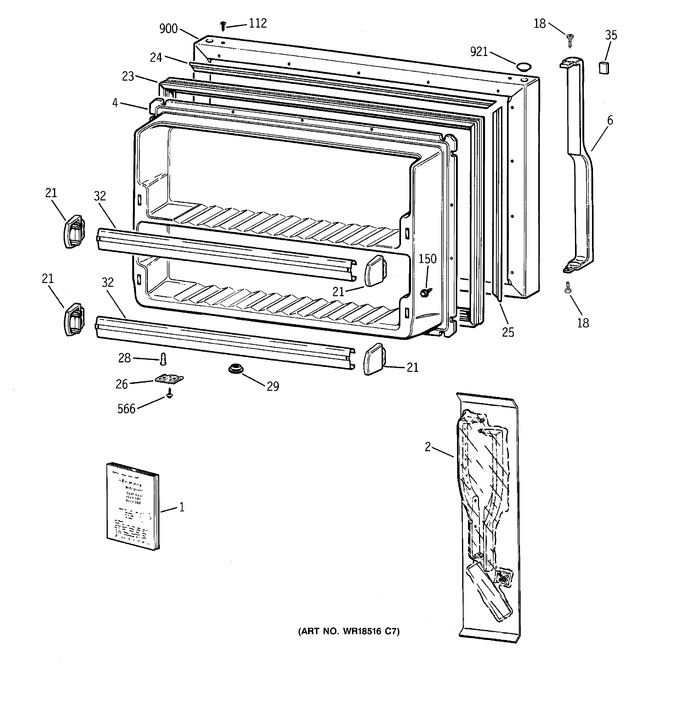

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelves & Drawers


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51228		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60013		Pm Guide Owners		Appelez-nous	-
2	WR12X10335		Pk Handle Small Asm Bk		Appelez-nous	-
4	WR77X610		Door Inner Fz		Appelez-nous	-
6	WR12X10334		Handle/np Asm Fz Bk		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
21	WR2X7975		Cap Shelf Front		Appelez-nous	-
23	WR24X539		Gasket Door Fz Bk		Appelez-nous	-
24	WR17X2279		Retainer Strip H		Appelez-nous	-
25	WR17X2281		Retainer Strip V		Appelez-nous	-
26	WR2X7628		Door Stop		Appelez-nous	-
28	WR02X10111		Thimble Door Plastic		Appelez-nous	-
29	WR2X8542		Plug Button Insert Bk		Appelez-nous	-
32	WR71X10092		Front Door Shelf Fz		Appelez-nous	-
35	WR04X10071		Lens Nameplate Bk		Appelez-nous	-
112	WR01A00518		Beauty Button (black)   (Replaces: WR2X8701)				$ 4.20
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
900	WR78X10086		Door Outer Fz Bk		Appelez-nous	-
921	WR2X8541		Plug Button Bk		Appelez-nous	-
