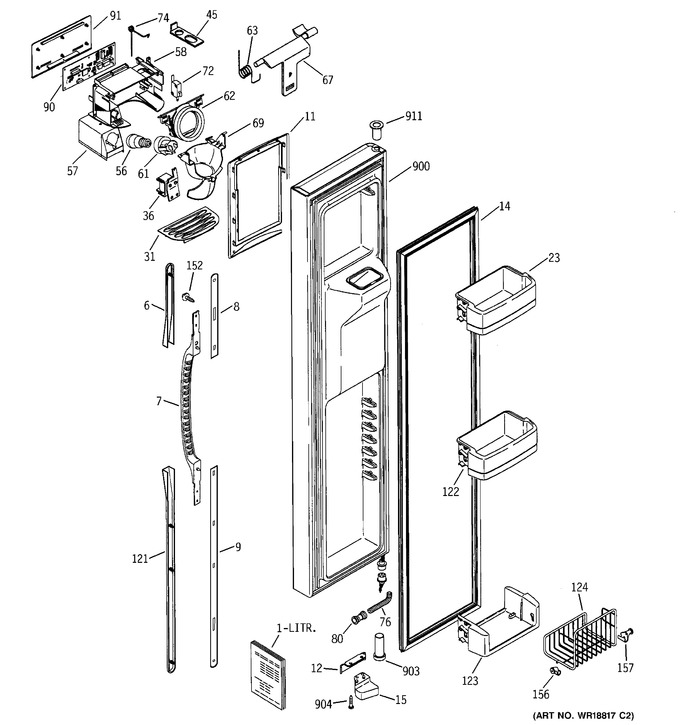

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51331 | Pm Mini Manual Wiring |
|
- | |||||
| 1 | 49-60117 | Pm Guide Owners |
|
- | |||||
| 1 | 31-5089 | Attention Installer |
|
- | |||||
| 6 | WR12X10323 | Tail Handle Sxs Bq |
|
- | |||||
| 7 | WR12X10322 | Handle Sxs Asm Bq |
|
- | |||||
| 8 | WR12X10150 | Trim Handle Sxs |
|
- | |||||
| 9 | WR12X10190 | Trim Handle Sxs |
|
- | |||||
| 11 | WR38X10229 | Recess Trim Flat Bq |
|
- | |||||
| 12 | WR02X10817 | Stop Door Bq |
|
- | |||||
| 14 | WR24X10065 | Gasket Door Fz Wh |
|
- | |||||
| 15 | WR02X10638 | Cam Closure Fz Wh |
|
- | |||||
| 23 | WR01L00038 | Module Shelf Fz Fixed (Replaces: WR71X10254) |
|
$ 26.67 | |||||
| 31 | WR17X10897 | Grille Recess Bq |
|
- | |||||
| 36 | WR01F01784 | Solenoid Asm (Replaces: WR62X10020) |
|
$ 80.09 | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 56 | WG03A03944 | Light Dispenser (Replaces: WR02X10675) |
|
Immediately | $ 60.67 | ||||
| 57 | WR02X10670 | Reflector Light |
|
- | |||||
| 58 | WR17X10814 | Housing Shield Disp Bq |
|
- | |||||
| 61 | WR2X9561 | Socket Lamp E12 |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X3093) |
|
$ 58.69 | |||||
| 63 | WG03A00047 | Spring Recess Door (Replaces: WR02X10585) |
|
Immediately | $ 3.57 | ||||
| 67 | WR01L00935 | Crank Door Recess (Replaces: WR17X10706) |
|
$ 11.44 | |||||
| 69 | WR17X10752 | Funnel Ice Disp Bq |
|
- | |||||
| 72 | WR23X10171 | Switch |
|
- | |||||
| 74 | WR02X10584 | Spring Funnel |
|
- | |||||
| 76 | WR2X8933 | Sleeve Water Line |
|
- | |||||
| 80 | WG03A00026 | Union Connector (Replaces: WR02X10471) |
|
$ 15.72 | |||||
| 90 | WR55X10063 | Board Asm Disp |
|
- | |||||
| 91 | WR55X10072 | Control Disp Asm |
|
- | |||||
| 121 | WR12X10324 | Tail Handle Sxs Bq |
|
- | |||||
| 122 | WR01L02896 | Module Shelf Fz (Replaces: WR71X10291) |
|
$ 24.03 | |||||
| 123 | WR71X10256 | Module Support Fz |
|
- | |||||
| 124 | WR21X10025 | Basket Wire Tiltout Fz |
|
- | |||||
| 156 | WR13X10130 | Hinge Tiltout Fz Lh |
|
- | |||||
| 157 | WR13X10131 | Hinge Tiltout Fz Rh |
|
- | |||||
| 900 | WR78X10429 | Door Foam Asm Fz |
|
- | |||||
| 903 | WR01X10237 | Thimble Door Btm Fz Bq |
|
- | |||||
| 904 | WR1X2134 | Scr 10-32 Pnt 1.0 S Lw |
|
- | |||||
| 911 | WR01X10236 | Thimble Door Top Bq |
|
- |
