Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 49-60159 Pm Guide Owners Appelez-nous -
1 31-51361 Pm Mini Manual Wiring Appelez-nous -
6 WR12X10323 Tail Handle Sxs Bq Appelez-nous -
7 WR12X10322 Handle Sxs Asm Bq Appelez-nous -
8 WR12X10150 Trim Handle Sxs Appelez-nous -
9 WR12X10190 Trim Handle Sxs Appelez-nous -
11 WR38X10229 Recess Trim Clad Bq Appelez-nous -
12 WR02X10817 Stop Door Bq Appelez-nous -
14 WR24X10065 Gasket Door Fz Wh Appelez-nous -
15 WR02X10638 Cam Closure Fz Wh Appelez-nous -
23 WR01L00038 Module Shelf Fz Fixed   (Replaces: WR71X10254) Special Order $ 26.67

31 WR17X10897 Grille Recess Bq Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10020) Special Order $ 80.09

45 WR2X8818 Retainer Recess Door Appelez-nous -
56 WG03A03944 Light Dispenser   (Replaces: WR02X10675) In-Stock Immediately $ 60.67

58 WR17X11121 Housing Shield Disp Bq Appelez-nous -
61 WR2X9561 Socket Lamp E12 Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X3093) Special Order $ 58.69

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.57

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 11.44

69 WR17X11149 Funnel Ice Disp Bq Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 15.72

74 WR02X10584 Spring Funnel Appelez-nous -
80 WG03A00026 Union Connector   (Replaces: WR02X10471) Special Order $ 15.72

90 WG03F00046 Board Asm Disp   (Replaces: WR55X10031) Special Order $ 194.65

91 WR55X10072 Control Disp Asm Bq Appelez-nous -
121 WR12X10324 Tail Handle Sxs Bq Appelez-nous -
122 WR71X10256 Module Support Fz Appelez-nous -
123 WR71X10255 Module Support Fz Appelez-nous -
124 WR21X10024 Basket Wire Tiltout Fz Appelez-nous -
125 WR21X10025 Basket Wire Tiltout Fz Appelez-nous -
156 WR13X10130 Hinge Tiltout Fz Lh Appelez-nous -
157 WR13X10131 Hinge Tiltout Fz Rh Appelez-nous -
900 WR78X10429 Door Foam Asm Fz Bq Appelez-nous -
903 WR01X10237 Thimble Door Btm Fz Bq Appelez-nous -
904 WR1X2134 Scr 10-32 Appelez-nous -
911 WR01X10236 Thimble Door Top Bq Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

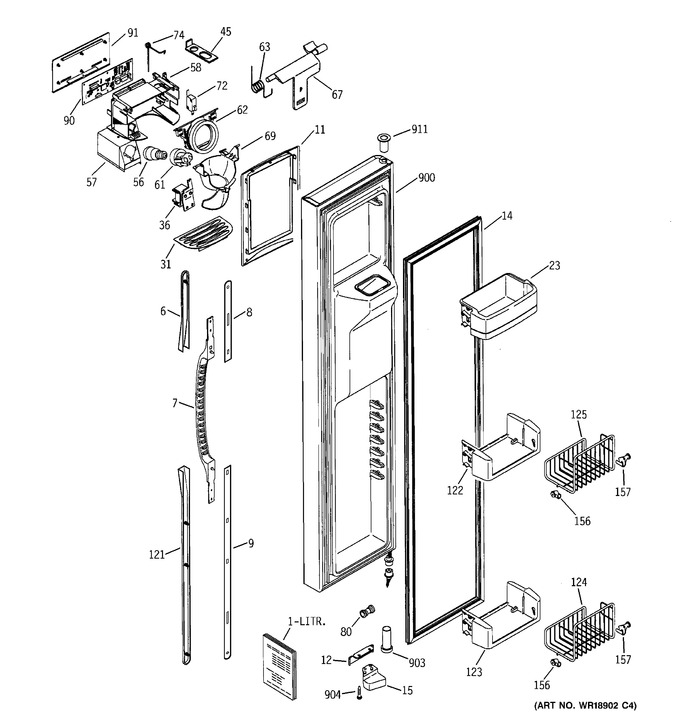

Diagram for ESS25LGMECC
