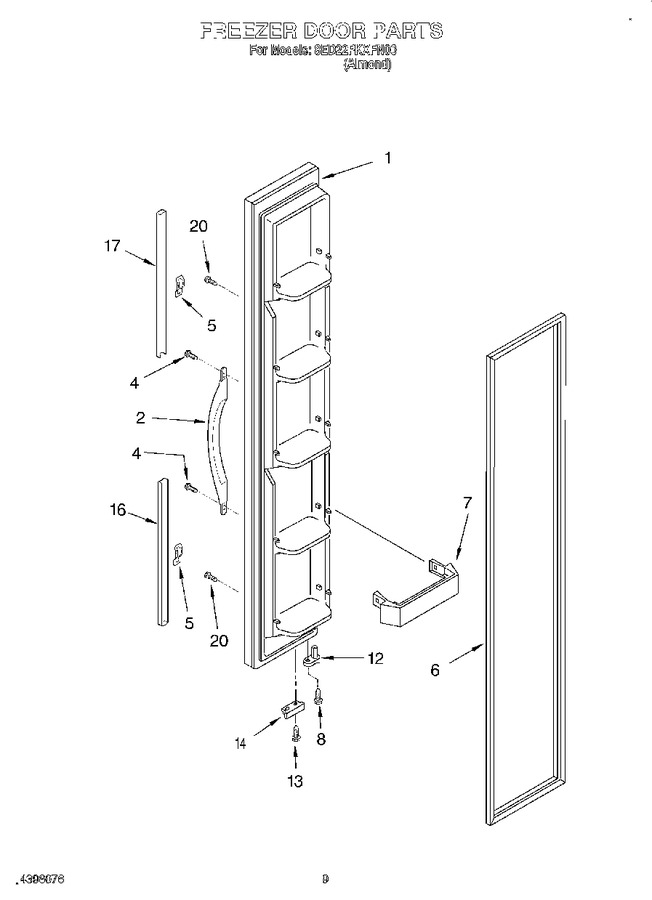

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2194198N | Freezer Door (includes No.6) (almond) |
|
- | |||||
| 2 | 2193345N | Handle, Center (almond) |
|
- | |||||
| 4 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 5 | WP2195327 | Clip (4) (Replaces: 2195327) |
|
$ 7.77 | |||||
| 6 | 2159072 | Door Gasket, Magnetic (service) |
|
$ 323.60 | |||||
| 7 | 2194286 | Trivet, Door Shelf (5) |
|
- | |||||
| 8 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 7.20 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | 2195950 | Bracket, Door Stop |
|
$ 5.84 | |||||
| 16 | 2194970N | Extension, Bottom (almond) |
|
- | |||||
| 17 | 2194971N | Extension, Top (almond) |
|
- | |||||
| 20 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 10.33 |
