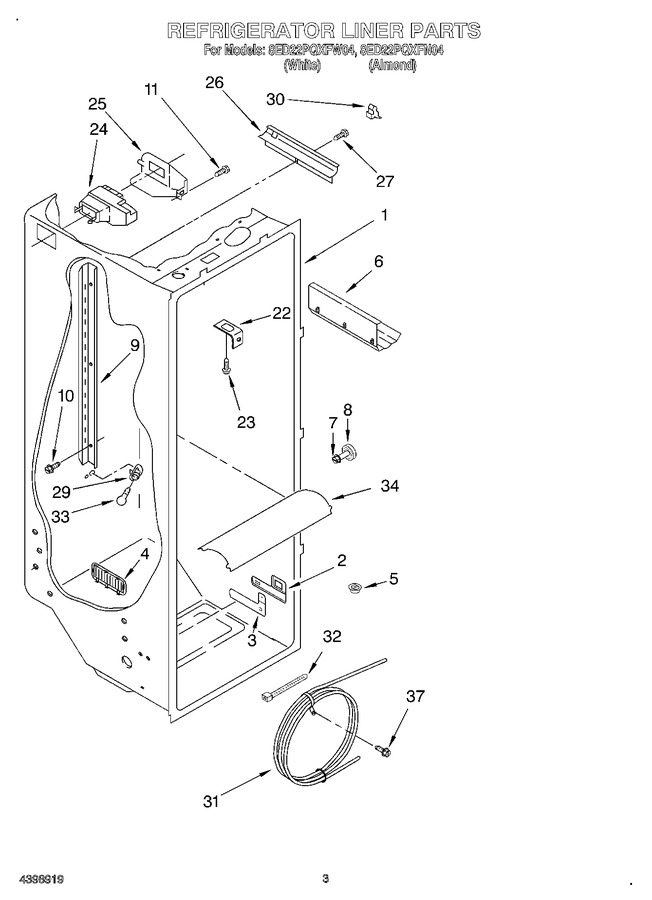

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 95.84 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2182147 | Louver |
|
- | |||||
| 5 | 2171846 | Release Valve |
|
$ 18.99 | |||||
| 6 | W10777924 | Rack, Wine & Egg (Replaces: 2179375) |
|
$ 24.78 | |||||
| 7 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 8.10 | |||||
| 8 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 10.87 | |||||
| 9 | 2181796 | Ladder, Shelf (2) |
|
- | |||||
| 10 | WP488729 | Screw (6) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 11 | WP489478 | Screw (2) (Replaces: 489478) |
|
$ 8.18 | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 36.10 | |||||
| 23 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 8.52 | |||||
| 24 | WPW10151374 | Air Diffuser Assembly (Replaces: 2209753) |
|
Immediately | $ 104.77 | ||||
| 25 | 2152019 | Cover, Air Diffuser |
|
$ 90.33 | |||||
| 26 | 2150331 | Cover, Conduit |
|
$ 25.62 | |||||
| 27 | W10759522 | Screw (Replaces: 486298) |
|
$ 8.24 | |||||
| 29 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 10.94 | |||||
| 31 | WP2256126 | Reservoir (Replaces: 2209687) |
|
$ 177.29 | |||||
| 32 | WP2205813 | Strap (Replaces: 2205813) |
|
$ 8.11 | |||||
| 33 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 34 | 2203266 | Light Lens |
|
$ 45.86 | |||||
| 37 | 488280 | Screw (2) |
|
- |
