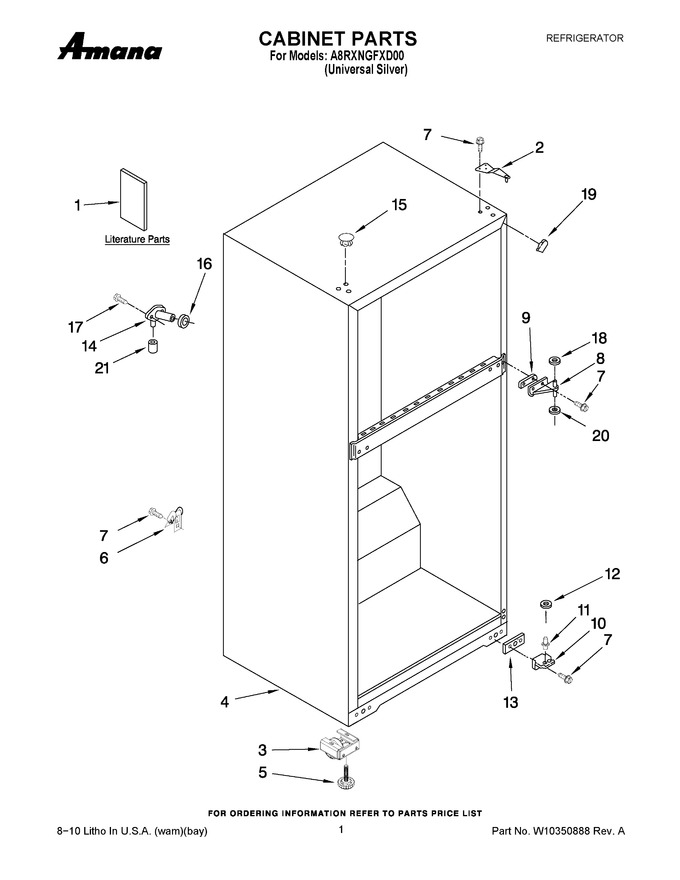

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10283801		Service & Wiring Sheet		Appelez-nous	-
1	677969		Do-it-yourself Manual, Ref./ Fzr.				$ 30.30
1	W10287917		Energy Label		Appelez-nous	-
1	W10214129		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 107.48
3	WPW10142530		Roller, Front   (Replaces: W10142530)			Immediately	$ 106.29
4	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
5	WPW10133299		Screw, Leveler   (Replaces: W10133299)				$ 11.12
6	549193		Clamp, Cord				$ 12.65
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
8	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 76.57
9	2215385		Shim, Hinge Center				$ 82.21
10	WP2325482		Hinge Butt   (Replaces: 2325482)			Immediately	$ 72.00
11	WP2325483		Hinge-pin (bottom)   (Replaces: 2325483)			Immediately	$ 6.80
12	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
13	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.34
14	WP2196157		Fitting, Water Tube   (Replaces: 2174760)			Immediately	$ 11.33
15	WP2183998		Hole Plug   (Replaces: 2183998)				$ 17.11
16	WP1106508		Seal   (Replaces: 1106508)			Immediately	$ 9.39
17	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.45
18	WP487802		Washer   (Replaces: 487802)			Immediately	$ 7.12
19	W11500943		Corner Filler   (Replaces: 2215384)				$ 7.18
20	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
21	WP487996		Cap Bushing   (Replaces: 487996)				$ 7.80
