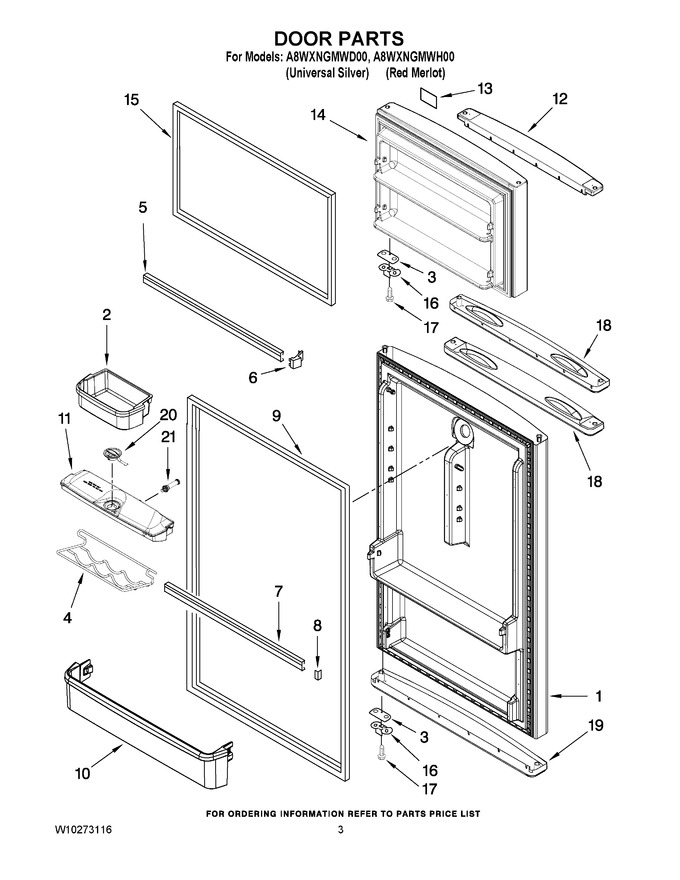

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10209946		Refrigerator Door (includes Illus. 9) (red Merlot)		Appelez-nous	-
1	W10209945		Refrigerator Door (includes Illus. 9) (universal Silver)		Appelez-nous	-
2	W11396038		Bin, Door   (Replaces: 2265126)				$ 161.94
3	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 7.55
4	2265630		Can Rack		Appelez-nous	-
5	WP2266727		Trim, Door Shelf (narrow)   (Replaces: 2266727)			Immediately	$ 120.57
6	WP2156003		End Cap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
7	2316061		Trim, Door Shelf		Appelez-nous	-
8	WP2156007		Endcap, Trim   (Replaces: 2156007)			Immediately	$ 8.03
9	WP2319264W		Door Gasket, Magnetic   (Replaces: 2264727)			Immediately	$ 329.08
10	WPW10468559		Trim, Door   (Replaces: 2328217)				$ 109.36
11	W10138779A		Water Tank Assy   (Replaces: W10138779)				$ 80.25
12	W10209944		Endcap, Top		Appelez-nous	-
13	2325418		Nameplate				$ 44.68
14	W10209948		Freezer Door (includes Illus. 15) (red Merlot)		Appelez-nous	-
14	W10209947		Freezer Door (includes Illus. 15) (universal Silver)		Appelez-nous	-
15	WP2319263W		Door Gasket, Magnetic   (Replaces: 2264726)			Immediately	$ 265.20
16	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
17	W10276642		Screw   (Replaces: 8533904)				$ 6.41
18	W10209940		Endcap, Handle		Appelez-nous	-
19	W10209942		Endcap, Bottom		Appelez-nous	-
20	W10138779A		Lid, Water Tank   (Replaces: 2328518)				$ 80.25
21	2328499A		Valve, Water Tank   (Replaces: 2328499)				$ 31.95
