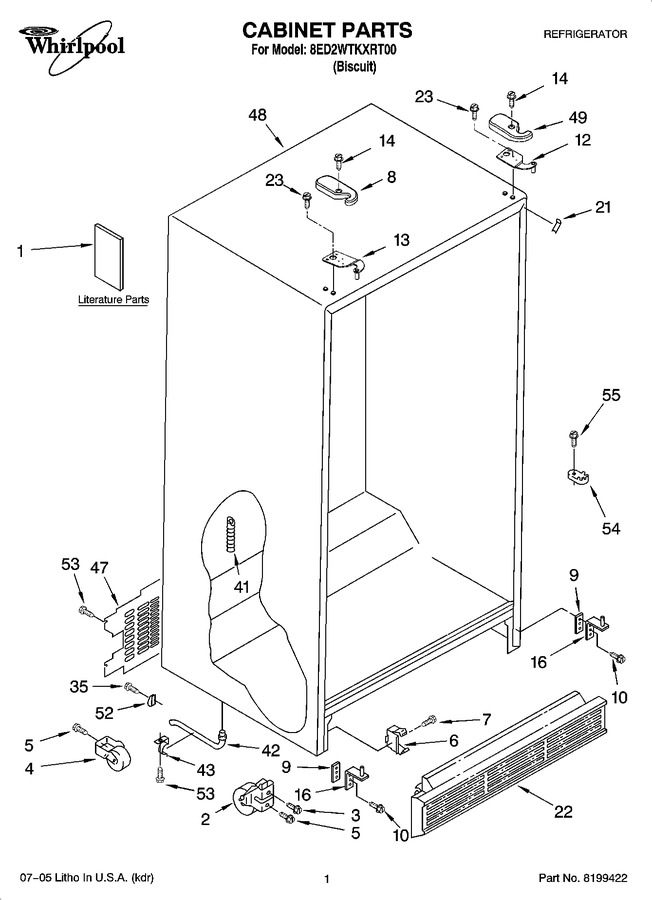

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2308205		Chinese		Appelez-nous	-
1	2308202		Use And Care Guide (english)		Appelez-nous	-
1	2255374		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 12.98
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 37.96
5	WP489427		Screw   (Replaces: 489427)				$ 7.06
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
7	WP489128		Screw   (Replaces: 488500)				$ 10.26
8	2203407T		Hinge Cover, Fc		Appelez-nous	-
9	2209697		Shim				$ 41.25
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
12	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 92.82
13	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 90.27
14	WP8281227		Screw   (Replaces: 8281227)				$ 9.86
16	8201707		Hinge Bottom   (Replaces: 2304322)				$ 87.71
21	2196150		Filler, Wrapper		Appelez-nous	-
22	2198469T		Grille				$ 76.00
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
35	W11693756		Screw   (Replaces: 488687)			Immediately	$ 13.28
41	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 48.11
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 29.61
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.15
47	2313329		Cover, Unit		Appelez-nous	-
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	2203408T		Hinge Cover, Rc		Appelez-nous	-
52	489348		Clamp, Service Cord		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.31
55	WP489483		Screw   (Replaces: 489483)				$ 10.27
