Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WPW10119935 Socket, Light   (Replaces: 2155597) Special Order $ 106.16

3 2198479 Light Lens Appelez-nous -
4 2223173 Plug, Fill Tube Special Order $ 9.24

5 WP941839 Hole, Plug   (Replaces: 941839) Special Order $ 8.03

6 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.94

7 W10318945 Shelf, Wire   (Replaces: 2309521) Special Order $ 103.20

8 2309522 Shelf, Wire Appelez-nous -
9 W11679940 Light Bulb   (Replaces: W10194422) In-Stock Immediately $ 11.30

10 WPW10318947 Shelf, Wire   (Replaces: 2309596) Special Order $ 91.81

11 W11577967 Freezer Bin   (Replaces: 2309757) Special Order $ 96.30

12 WPW10318948 Shelf, Wire   (Replaces: 2309597) Special Order $ 155.23

13 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18

14 2160912 Wiring Cover Appelez-nous -
15 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 39.09

16 WP2196483 Stud Assembly   (Replaces: 2196483) Special Order $ 10.87

17 WP3400806 Screw   (Replaces: 8281158) Special Order $ 8.10

18 WPW10130299 Shelf Cup   (Replaces: W10130299) In-Stock Immediately $ 14.70

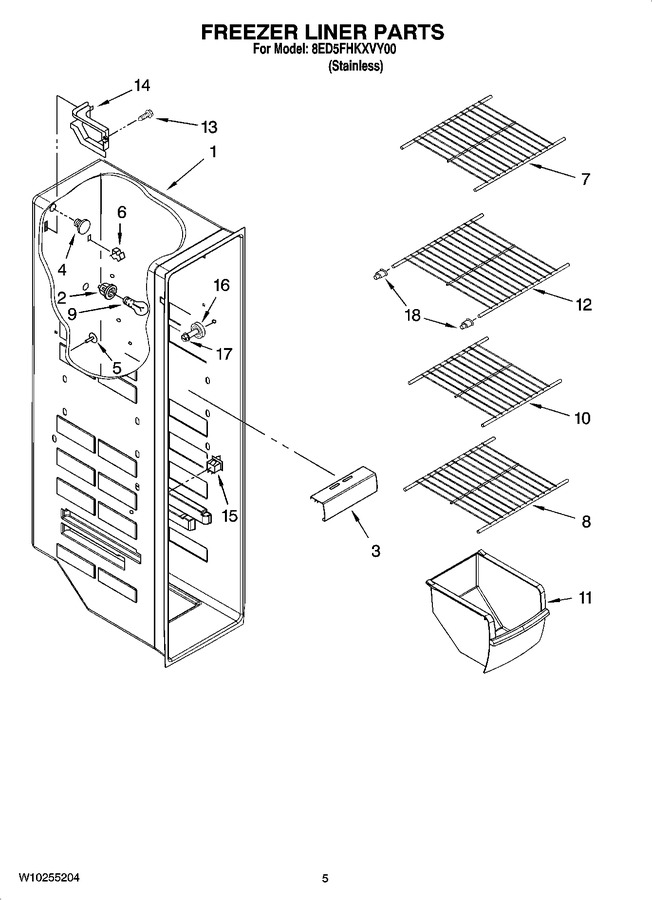

    View Diagram in Separate Window     Print Icon   Print Part List
