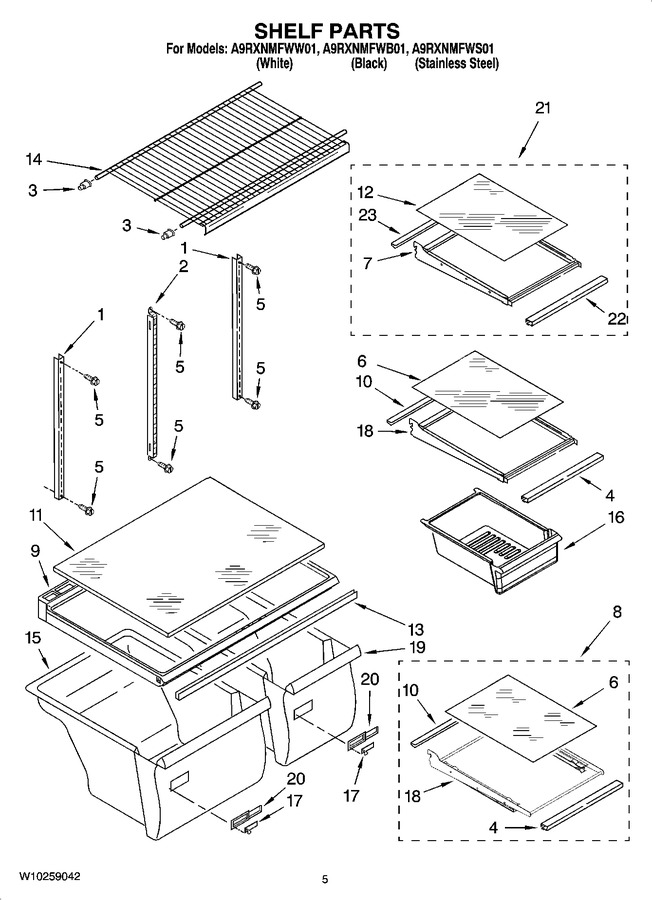

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 13.23
4	2188684		Trim-shelf, Front				$ 11.33
5	WP489478		Screw   (Replaces: 489478)				$ 7.36
6	2169917		Glass, Shelf				$ 84.17
7	2201103E		Shelf-cantilever Meat Pan		Appelez-nous	-
8	2201105		Shelf Assy				$ 78.45
9	WP2314548		Crisper Cover   (Replaces: W10221199)				$ 233.85
10	WP2188689		Trim-shelf, Rear   (Replaces: 2188686)				$ 109.40
11	WP2169921		Glass, Crisper Cover   (Replaces: 2221693)				$ 233.04
12	2177824		Glass, Half Shelf				$ 139.59
13	WP2172748		Support, Crisper   (Replaces: 2314477)				$ 91.87
14	2189453		Shelf, Freezer		Appelez-nous	-
15	W10854037		Pan, Crisper (13-inch) (includes 17,20)   (Replaces: 2218130)			Immediately	$ 161.27
16	WP2218127K		Pan, Meat   (Replaces: 2218127K)				$ 132.12
17	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
18	2201101E		Shelf-cantilever		Appelez-nous	-
19	W10856580		Pan, Crisper (10-inch) (includes 17, 20)   (Replaces: 2218129)			Immediately	$ 159.33
20	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 14.23
21	2201137		Shelf Assembly		Appelez-nous	-
22	2188690		Trim,shelf Front		Appelez-nous	-
23	WP2188689		Trim, Shelf Rear   (Replaces: 2188688)				$ 109.40
