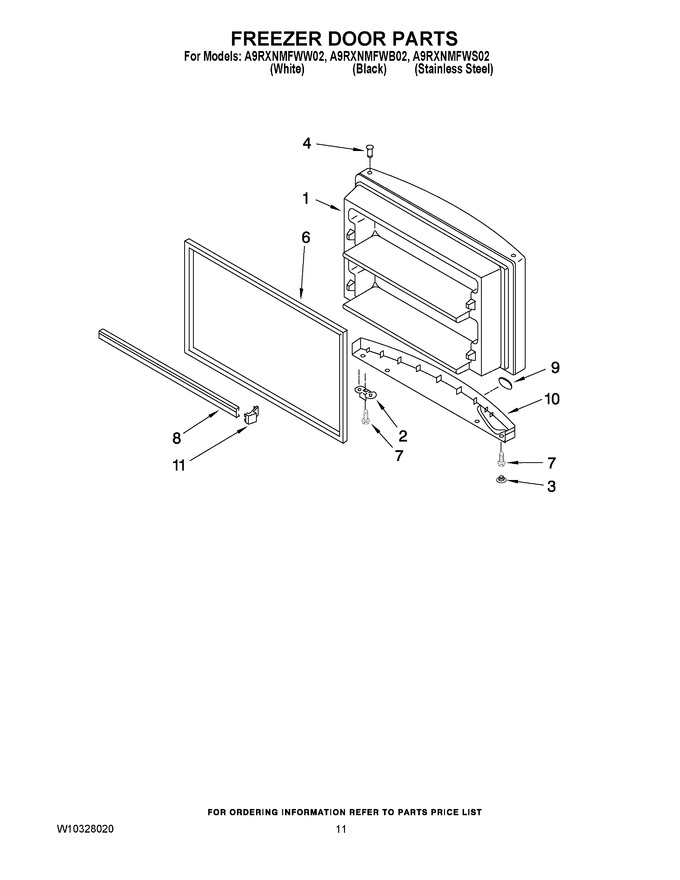

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205402 | Freezer Door (includes Illus. 4 & 6) (black) |
|
- | |||||
| 1 | W10271893 | Freezer Door (includes Illus. 4 & 6) (stainless Steel) |
|
- | |||||
| 1 | 2205399 | Freezer Door (includes Illus. 4 & 6) (white) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | 2204840 | Hole Plug, Endcap (black) |
|
$ 33.23 | |||||
| 3 | 2204837 | Hole Plug, Endcap (white) |
|
$ 27.77 | |||||
| 4 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 6 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 292.22 | |||||
| 6 | 2159327 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 148.12 | ||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 8 | 2195946 | Trim, Door Shelf (2) |
|
$ 46.58 | |||||
| 9 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 56.47 | ||||
| 10 | 2300583W | Handle, Endcap (white) |
|
$ 11.25 | |||||
| 10 | 2300583B | Handle, Endcap (black) |
|
$ 20.18 | |||||
| 11 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 |
