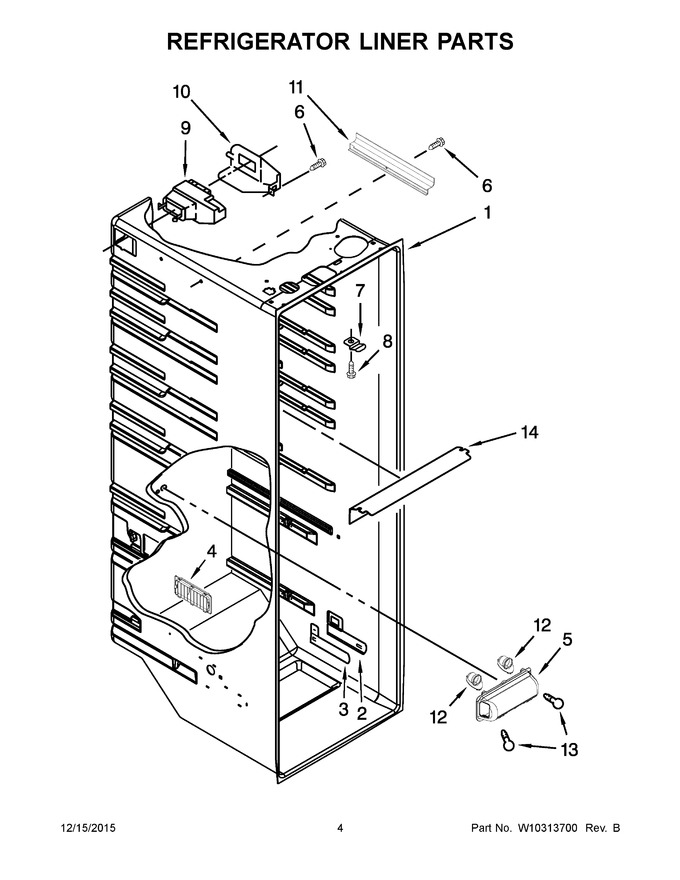

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide, Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	W11239891		Lens, Light   (Replaces: W10166019)				$ 91.37
6	W10759522		Screw   (Replaces: 486298)				$ 7.42
7	2311612		Clip, Control Box		Appelez-nous	-
8	WP488488		Screw   (Replaces: 489290)				$ 7.67
9	WPW10151374		Assembly, Air Diffuser   (Replaces: W10151374)			Immediately	$ 94.29
10	2152019		Cover, Air Diffuser				$ 81.30
11	W10252495		Cover, Wiring		Appelez-nous	-
12	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
13	W11679940		Bulb, Light   (Replaces: W10194422)			Immediately	$ 10.17
14	2198479		Lens, Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
