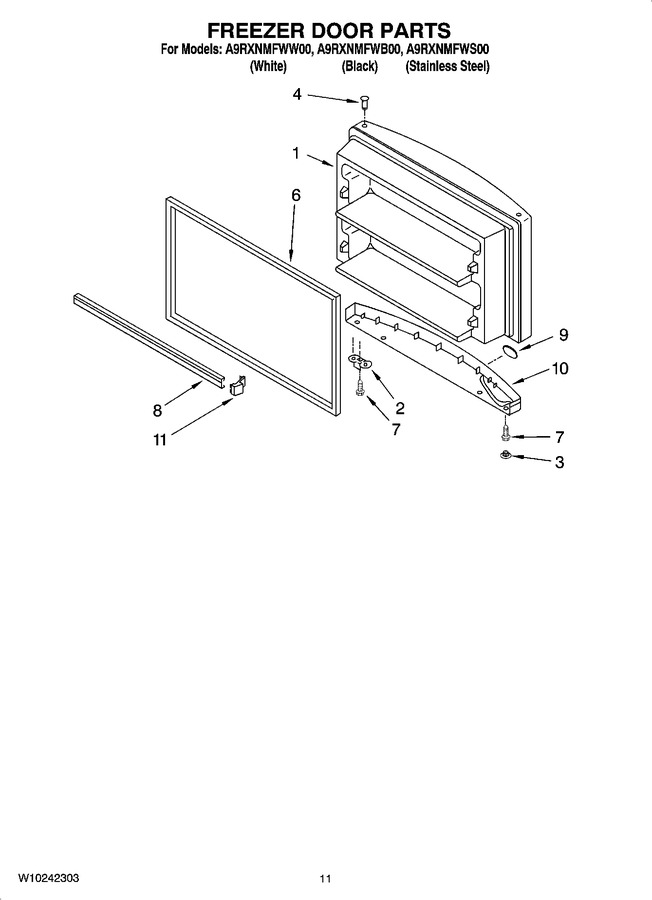

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141743		Freezer Door (includes Illus. 4 & 6) (stainless Steel)		Appelez-nous	-
1	2205402		Freezer Door (includes Illus. 4 & 6) (black)		Appelez-nous	-
1	2205399		Freezer Door (includes Illus. 4 & 6) (white)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
3	2204837		Hole Plug, Endcap (white)				$ 27.77
3	2204840		Hole Plug, Endcap (black)				$ 33.23
4	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
6	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 148.12
6	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 292.22
7	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
8	2195946		Trim, Door Shelf (2)				$ 46.58
9	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 56.47
10	2300583W		Handle, Endcap (white)				$ 11.25
10	2300583B		Handle, Endcap (black)				$ 20.18
11	WP2195916K		Endcap, Trim (4)   (Replaces: 2195916)			Immediately	$ 11.86
NI	606755		Bag, Insulation(36-5/8`` X 46``)				$ 74.13
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	350942		Primer, White (12 Oz. Spray Can)				$ 84.73
NI	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
NI	350930		Enamel, White (12 Oz. Spray Can)			Immediately	$ 36.11
NI	4392899		Brush Touch-up Kit (biscuit)			Immediately	$ 24.99
NI	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
NI	799344		Enamel, White (1 Qt. Uncut)				$ 237.46
NI	4392900		Enamel, Biscuit (1 Qt. Uncut)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 7.62
NI	W11729596		Field Installable Ice Maker (eckmf94)   (Replaces: 2155469)			Immediately	$ 139.50
NI	1117510		Torx Key				$ 5.84
NI	72032		Brush Touch-up Kit (black)			Immediately	$ 18.69
NI	72017		Brush Touch-up Kit (white)			Immediately	$ 11.07
NI	4392901		Enamel, Biscuit (12 Oz. Spray Can)		Appelez-nous	-
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 11.50
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 164.39
NI	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
NI	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	876370		Kit, Insulation (2 Pcs.3`` X 24 `` X 48``)				$ 218.83
NI	876029		Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``)		Appelez-nous	-
NI	511873		Touch-up, White Porcelain (2 Oz.)				$ 46.58

    View Diagram in Separate Window       Print Part List
