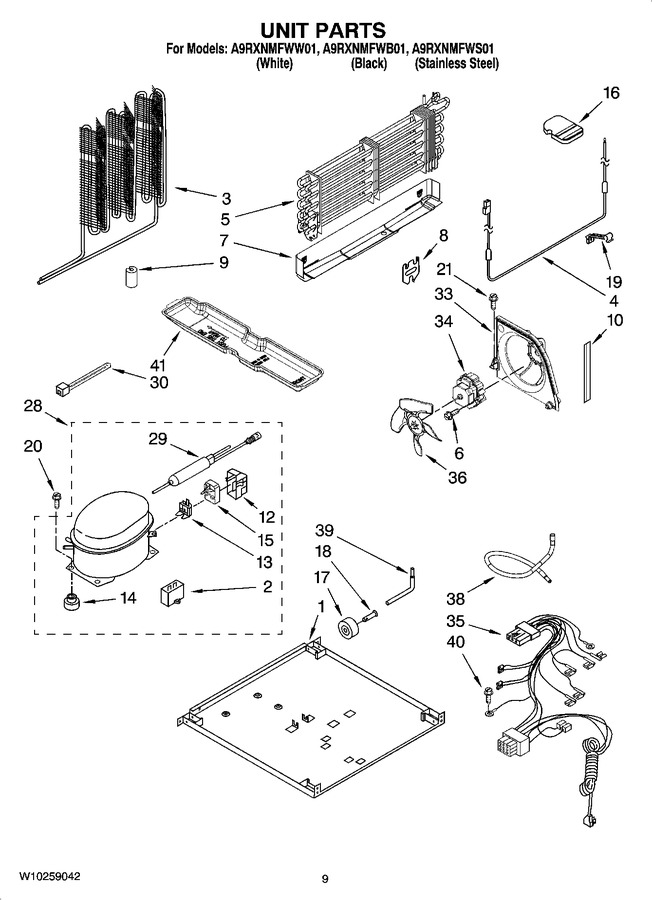

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2320188 | Plate, Unit Mounting |
|
- | |||||
| 2 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 3 | W10159808 | Condenser |
|
- | |||||
| 4 | WP2315531 | Heater, Defrost (Replaces: 2315531) |
|
$ 116.58 | |||||
| 5 | 2254250 | Evaporator Assy. |
|
$ 234.07 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | 2254294 | Drain Pan |
|
- | |||||
| 8 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 9 | W10852725 | Grommet, Cond (4) (Replaces: 2319835) |
|
$ 7.28 | |||||
| 10 | 2300638 | Extension, Air Baffle |
|
$ 52.69 | |||||
| 12 | WP2162358 | Cover ((service Only)) (Replaces: 4387731) |
|
$ 85.76 | |||||
| 12 | WP2162358 | Cover (production) (Replaces: 2162358) |
|
$ 85.76 | |||||
| 13 | WP2302290 | Overload (production) (Replaces: 2302290) |
|
$ 126.20 | |||||
| 13 | WP2214067 | Overload ((service Only)) (Replaces: 4390624) |
|
$ 124.42 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 15 | 8201647 | Relay-combo Device Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2225930) |
|
$ 170.13 | |||||
| 16 | 2201184 | Support Block |
|
$ 6.43 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 21 | 3400518 | Screw |
|
$ 12.27 | |||||
| 28 | W10233960 | Compressor (includes Items 12,13,14,29 (Replaces: W10237272) |
|
Immediately | $ 485.41 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 7.47 | |||||
| 33 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 79.19 | ||||
| 34 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 111.76 | ||||
| 35 | 2187382 | Wire Assembly Unit |
|
$ 264.30 | |||||
| 36 | W11458267 | Fan, Blade (Replaces: 2225834) |
|
Immediately | $ 22.67 | ||||
| 38 | 2205293 | Tube, Suction |
|
$ 92.88 | |||||
| 39 | W11676464 | Tube, Process (Replaces: 2212848) |
|
$ 97.75 | |||||
| 40 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 41 | WP2254574 | Evaporator Tray (Replaces: 2254574) |
|
$ 165.23 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 16.79 |
