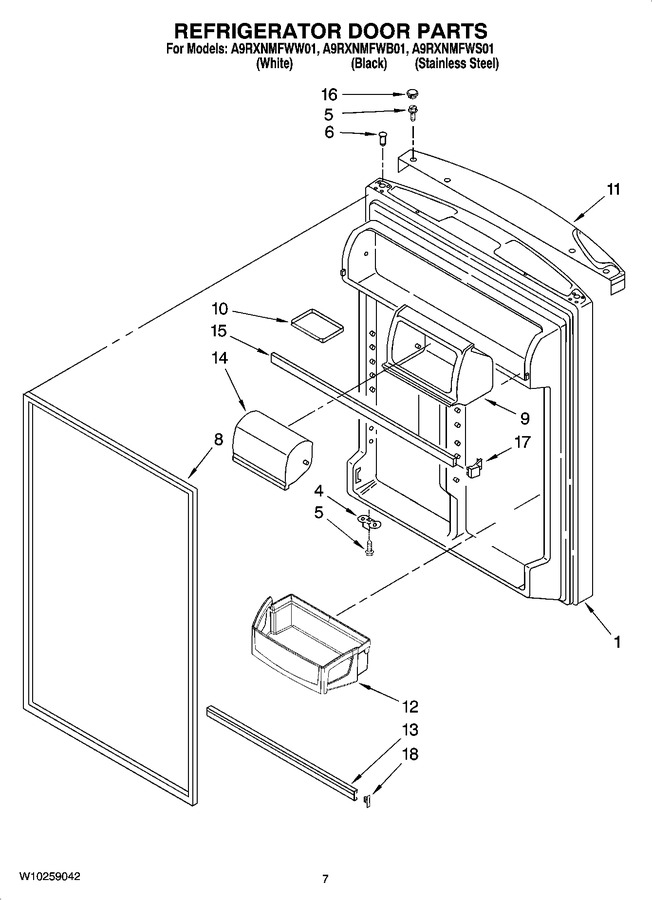

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205398 | Refrigerator Door (includes Illus. 6 & 8) (black) |
|
- | |||||
| 1 | W10141742 | Refrigerator Door (includes Illus. 6 & 8) (stainless Steel) |
|
- | |||||
| 1 | 2205395 | Refrigerator Door (includes Illus. 6 & 8) (white) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | WP681249 | Screw, 8 X 1/2 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 8 | 2177305 | Door Gasket, Magnetic (black) (Replaces: 2202881) |
|
$ 261.06 | |||||
| 8 | 2159057 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202874) |
|
Immediately | $ 168.76 | ||||
| 9 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 10 | 2159302 | Tray, Door |
|
$ 42.08 | |||||
| 11 | 2300579W | Handle, Endcap (white) |
|
$ 77.23 | |||||
| 11 | 2300579B | Handle, Endcap (black) |
|
$ 18.39 | |||||
| 12 | 2204811 | Bin, Door (3) |
|
$ 35.90 | |||||
| 13 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 122.63 | |||||
| 14 | 2218109 | Door Compartment |
|
$ 33.66 | |||||
| 15 | 2159312 | Trim, Door Shelf |
|
$ 47.75 | |||||
| 16 | 2204837 | Hole Plug, Endcap (white) |
|
$ 27.77 | |||||
| 16 | 2204840 | Hole Plug, Endcap (black) |
|
$ 33.23 | |||||
| 17 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 18 | WP2156006 | Plug, Trim (Replaces: 2156006) |
|
Immediately | $ 11.51 |
