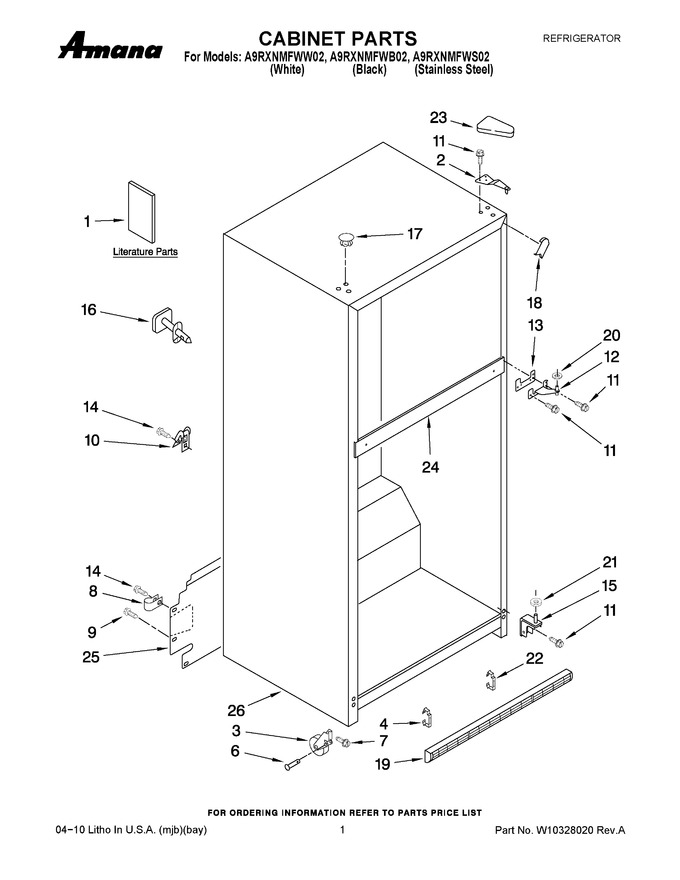

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677969 | Do-it-yourself Manual Ref./fzr. |
|
$ 30.30 | |||||
| 1 | W10312255 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10251538 | Energy Label Use & Care Guide |
|
- | |||||
| 1 | W10249208 | Bilingual |
|
- | |||||
| 1 | W10249209 | Trilingual |
|
- | |||||
| 2 | 2261961 | Hinge (top) |
|
- | |||||
| 3 | WP2166108 | Roller, Front (2) (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 4 | 2189356 | Clip, Grille |
|
$ 5.70 | |||||
| 6 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 7 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 6.80 | |||||
| 8 | WP488366 | Tube Clamp (Replaces: 489385) |
|
$ 10.73 | |||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 10 | 549193 | Clamp,cord |
|
$ 12.65 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 12 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 13 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 14 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.54 | ||||
| 15 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.35 | |||||
| 16 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 17 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 20.58 | |||||
| 17 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 17.11 | |||||
| 18 | WPW10283959 | Corner Filler (2) (white) (Replaces: W10283959) |
|
$ 7.39 | |||||
| 18 | W11252732 | Corner Filler (2) (black) (Replaces: W10283960) |
|
$ 11.76 | |||||
| 19 | WP2254386 | Grille (includes Illus. 4 & 22) (white) (Replaces: 2254386) |
|
$ 89.33 | |||||
| 19 | 2254388 | Grille (includes Illus. 4 & 22) (black) |
|
$ 40.22 | |||||
| 20 | WP489467 | Washer, Plain (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 21 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 22 | 2254385 | Clip, Grille |
|
$ 79.98 | |||||
| 23 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 17.21 | ||||
| 23 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 18.17 | |||||
| 24 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 25 | 2254578 | Cover, Unit |
|
$ 46.75 | |||||
| 26 | N/P | Cabinet (not A Serviceable Part) |
|
- |
