Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
4	2169798		Slide Shelf Frame, Cantilever		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4   (Replaces: 488163)				$ 7.92
7	1116693		Shelf, Cantilever (2)		Appelez-nous	-
8	2169608		Hook, Shelf		Appelez-nous	-
9	2162906		Crisper Cover		Appelez-nous	-
10	2162847		Trim, Crisper Cover		Appelez-nous	-
11	2162979		Glass, Crisper Cover		Appelez-nous	-
12	1116703		Pan Shelf And Slide Assembly		Appelez-nous	-
13	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 47.84
14	489419		Screw		Appelez-nous	-
15	WP2172748		Support, Crisper Cover   (Replaces: 2172750)				$ 102.08
16	2162978		Shelf, Glass		Appelez-nous	-
17	1116722		Shelf, Freezer		Appelez-nous	-
18	2162933		Trim, Shelf Front		Appelez-nous	-
19	2162855		Pan, Crisper		Appelez-nous	-
20	2162929		Pan, Meat		Appelez-nous	-
21	1116713		Crisper, Gasket Front (2)		Appelez-nous	-
22	2169878		Slide Track Assy., Shelf		Appelez-nous	-
23	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 41.66
26	1118054		Divider		Appelez-nous	-
27	W10136387A		Egg Bin   (Replaces: 2170522)				$ 19.54
28	1106817		Slide, Ice Compartment		Appelez-nous	-
29	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 8.18
30	2162944		Door, Ice Compartment		Appelez-nous	-
31	1116714		Crisper, Gasket Rear (2)		Appelez-nous	-
32	2162849		Slide, Crisper		Appelez-nous	-
33	1106624		Shelf, Ice Compartment		Appelez-nous	-
34	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 41.66
35	W11625904		Pan, Utility   (Replaces: 2157829)				$ 67.83
36	2162850		Front, Crisper Pan		Appelez-nous	-
37	2164374		Cover		Appelez-nous	-
38	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
39	946356		Shelf Stud		Appelez-nous	-
40	1106612		Shelf Stud (2)				$ 7.56
41	946355		Support, Stud		Appelez-nous	-
42	489162		Screw		Appelez-nous	-
43	2162942		Reflector, Shelf		Appelez-nous	-
44	2162940		Trim, Shelf		Appelez-nous	-
45	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
45	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
45	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
45	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
45	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
45	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
45	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
45	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
45	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
45	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
45	833938		Kit, Terminal Connector				$ 8.47
45	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
45	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
45	2169800		Shelf, Glass		Appelez-nous	-
45	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
45	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
45	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
45	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
45	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
45	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
45	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
45	2172761		Door Reversal Instructions		Appelez-nous	-
45	350942		Primer White (13 Oz. Spray Can)				$ 94.14
45	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
45	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	1117510		Torx Key				$ 5.84
	LIT2158683		Service & Wiring Sheet		Appelez-nous	-
	LIT2170159		Use & Care Guide		Appelez-nous	-

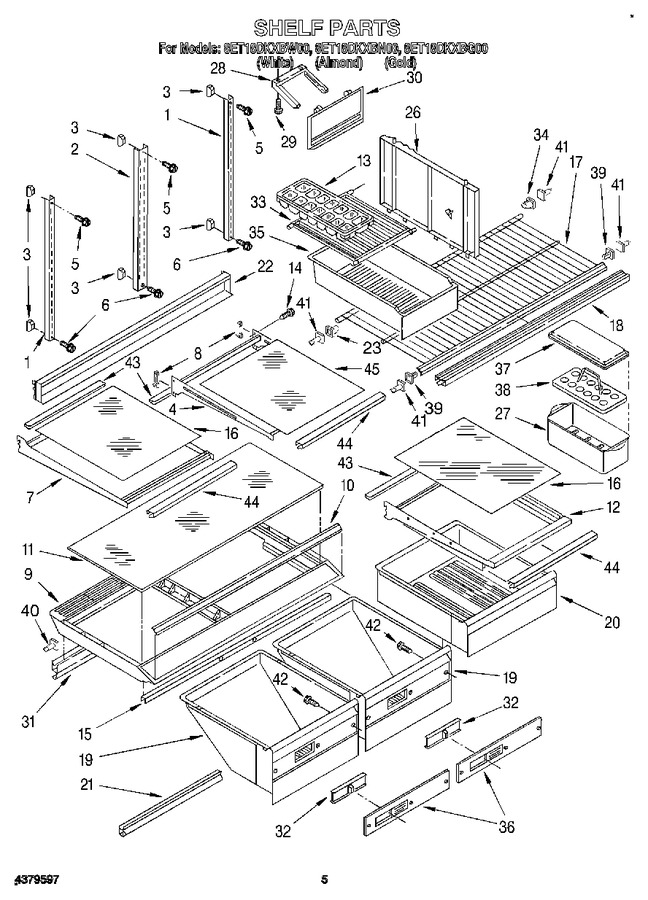

    View Diagram in Separate Window       Print Part List
