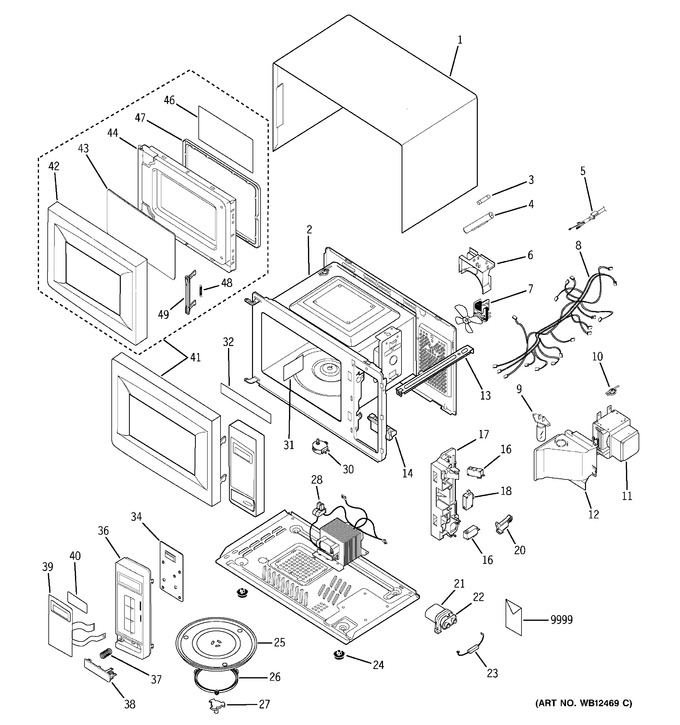

1 - Microwave
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB56X10263 | Panel-outer |
|
- | |||||
| 2 | WB27X10075 | Thermostat |
|
- | |||||
| 3 | WB27X10454 | Fuse 250v 15a |
|
- | |||||
| 4 | WB06X10226 | Fuse Holder |
|
- | |||||
| 5 | WB18X10189 | Power Cord Ass'y |
|
- | |||||
| 6 | WB06X10430 | Cover-blower |
|
- | |||||
| 7 | WB26X10094 | Motor Fan Ass'y |
|
- | |||||
| 8 | WB18X10190 | Wire Harness-a |
|
- | |||||
| 9 | WB08X10012 | Lamp:125v25w |
|
$ 27.50 | |||||
| 10 | WB20X10003 | Thermostat |
|
- | |||||
| 11 | WB27X10585 | Magnetron |
|
- | |||||
| 12 | WB56X10249 | Cover-air |
|
- | |||||
| 13 | WB06X10423 | Bracket Mounting Ass'y |
|
- | |||||
| 14 | WB06X10186 | Lever Door |
|
- | |||||
| 16 | WB24X10038 | Switch Micro |
|
- | |||||
| 17 | WB06X10424 | Body-latch |
|
- | |||||
| 18 | WB24X10075 | Switch-micro |
|
- | |||||
| 20 | WB06X10300 | Lever Switch |
|
- | |||||
| 21 | WB27X10240 | Capacitor Hv |
|
- | |||||
| 22 | WB02X10748 | Bracket Hvc |
|
- | |||||
| 23 | WB27X10169 | Diode-h.v |
|
- | |||||
| 24 | WB06X10194 | Foot |
|
- | |||||
| 25 | WB49X10097 | Tray-cooking |
|
- | |||||
| 26 | WB06X10425 | Guide Roller Ass'y |
|
- | |||||
| 27 | WB06X10426 | Coupler |
|
- | |||||
| 28 | WB27X10622 | Trans-h.v |
|
- | |||||
| 30 | WB26X10024 | Motor-turn Table |
|
- | |||||
| 31 | WB06X10427 | Cover-mgt |
|
- | |||||
| 32 | 49-40261 | Label-cooking Guide |
|
- | |||||
| 34 | WB27X10623 | Smart Board |
|
- | |||||
| 36 | WB07X10524 | Control-panel |
|
- | |||||
| 37 | WB9X308 | Spring-button |
|
- | |||||
| 38 | WB03X10066 | Button-push |
|
- | |||||
| 39 | WB27X10624 | Switch Membrane |
|
- | |||||
| 40 | WB06X10301 | Window Display |
|
- | |||||
| 41 | WB55X10526 | Door Ass'y |
|
- | |||||
| 42 | WB55X10527 | Door-a |
|
- | |||||
| 43 | WB55X10327 | Door Screen |
|
- | |||||
| 44 | WB55X10528 | Door-e(coating) Ass'y |
|
- | |||||
| 46 | WB06X10428 | Film-door |
|
- | |||||
| 47 | WB55X10081 | Door - C Wht |
|
- | |||||
| 48 | WB09X10019 | Spring-key |
|
- | |||||
| 49 | WB06X10429 | Key-door |
|
- | |||||
| 9999 | 31-40011 | Mini-manual |
|
- | |||||
| 9999 | 49-40254 | Use & Care |
|
- |
