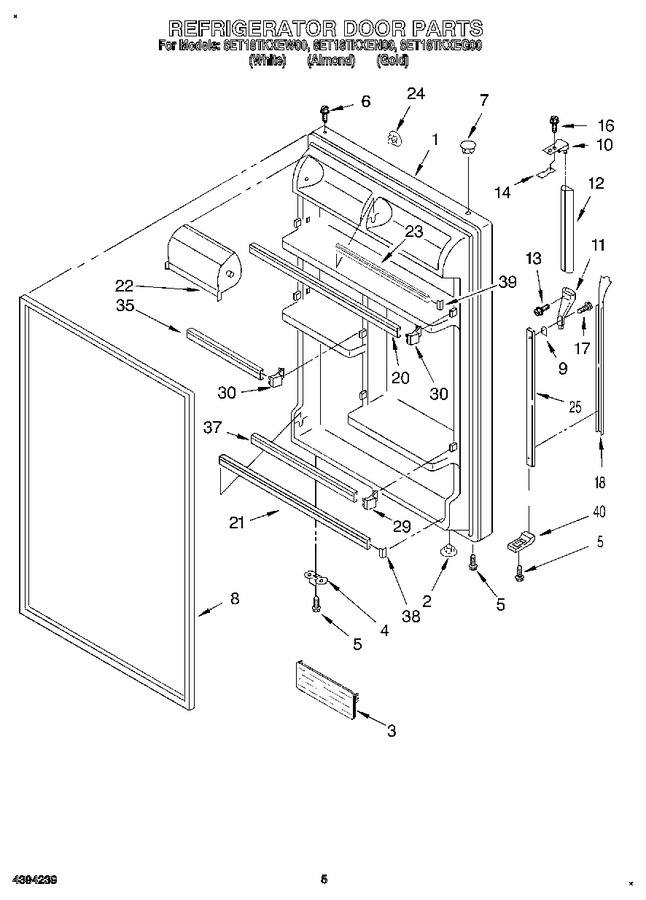

04 - Refrigerator Door


05 - Liner


06 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171029		Door, Refrigerator (includes Item 8) (white)		Appelez-nous	-
1	2170439		Door, Refrigerator (includes Item 8) (gold)		Appelez-nous	-
1	2171030		Door, Refrigerator (includes Item 8) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989879		Hole Plug (2) (gold)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	2159303		Shelf, Flip-up		Appelez-nous	-
4	2159368		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (gold)   (Replaces: 989893)			Immediately	$ 8.19
8	2159057		Door Gasket, Magnetic			Immediately	$ 187.51
9	935075		Shim		Appelez-nous	-
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	1120781		Handle, Center (black)		Appelez-nous	-
12	2150150		Handle, Center (white)		Appelez-nous	-
12	943068		Handle Center (almond)		Appelez-nous	-
13	489022		Screw		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
18	2166784		Insert, Handle (almond)		Appelez-nous	-
18	2159416		Insert, Handle (black)		Appelez-nous	-
18	2166438		Insert, Handle (white)		Appelez-nous	-
20	2171038		Trim, Door Shelf		Appelez-nous	-
21	2184570		Trim, Door Shelf		Appelez-nous	-
22	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
23	WP2201061		Trim, Door Shelf   (Replaces: 2171040)				$ 124.32
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122694		Hole Plug, Handle (black)		Appelez-nous	-
25	2159417		Retainer		Appelez-nous	-
26	2160050		Divider, Door Shelf		Appelez-nous	-
29	2156001		Endcap, Trim (2)		Appelez-nous	-
30	WP2195915		Endcap, Trim (4)   (Replaces: 2156000)				$ 13.72
35	2171039		Trim, Door Shelf		Appelez-nous	-
37	2171041		Trim-door Shelf		Appelez-nous	-
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.79
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 8.03
40	1105804		Endcap		Appelez-nous	-
