01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional

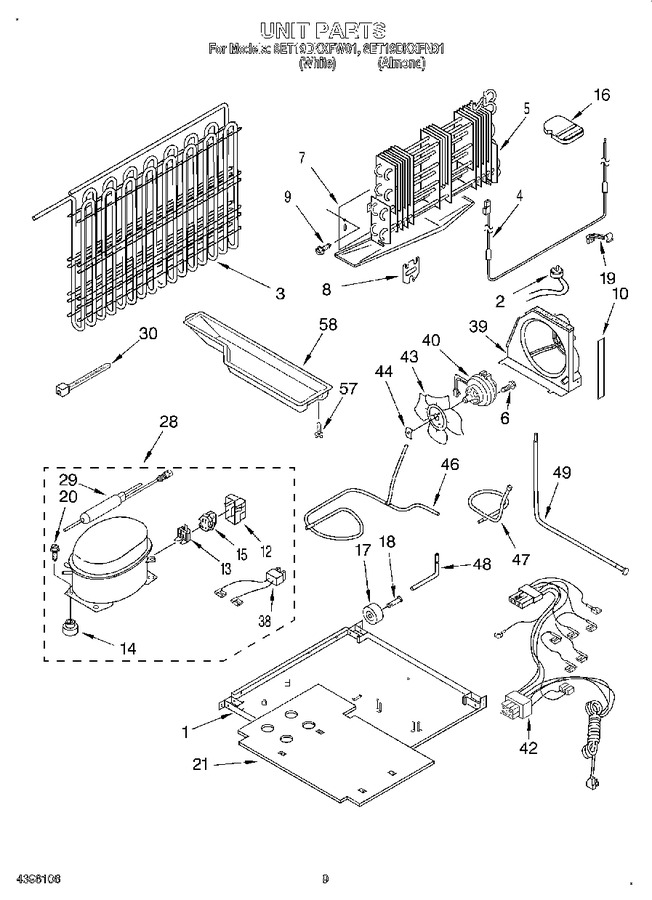

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2188168		Plate, Unit Mounting		Appelez-nous	-
2	WP4387503		Defrost Bimetal   (Replaces: 2182380)			Immediately	$ 43.10
3	2195400		Condenser		Appelez-nous	-
4	WP2315531		Heater, Defrost   (Replaces: 2176300)				$ 116.58
5	2195391		Evaporator Assy.		Appelez-nous	-
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 6.80
7	2172619		Drain Pan		Appelez-nous	-
8	2176301		Bracket, Heater				$ 6.37
9	WP489478		Screw   (Replaces: 489478)				$ 7.36
10	2163780		Extension, Air Baffle (production Only)		Appelez-nous	-
12	WP2162358		Cover (service Only)   (Replaces: 2162358)				$ 85.76
13	WP4387938		Overload (includes Relay) (service)   (Replaces: 4387938)				$ 178.72
13	WP4387938		Overload (includes Relay) (production)   (Replaces: 2183452)				$ 178.72
14	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 13.69
14	876811		Grommet, (service Compressor) (4)   (Replaces: 1100826)				$ 7.01
15	N/A		Relay (see Overload)		Appelez-nous	-
16	2176302		Support Block		Appelez-nous	-
17	4388239		Roller (2)   (Replaces: 836054)			Immediately	$ 68.39
18	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 17.21
19	2182338		Clip, Heater				$ 6.62
20	W11661574		Screw   (Replaces: 489473)				$ 12.86
21	2198740		Cover, Unit				$ 36.19
28	482801		Installation Kit				$ 119.50
28	876765		Tube Kit			Immediately	$ 81.59
28	W10823815		Compressor (includes Items 11, 12, 13, 15, 29, 38) (also Order)   (Replaces: 2183464)				$ 637.07
29	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 51.42
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.47
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 7.66
39	2198921		Air Baffle		Appelez-nous	-
40	W10822259		Motor, Condenser   (Replaces: 2183437)			Immediately	$ 241.66
42	2184584		Wire Assy. Unit		Appelez-nous	-
43	2190685		Blade, Fan				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 7.59
46	2179722		Tube, Discharge		Appelez-nous	-
47	2189161		Tube, Suction		Appelez-nous	-
48	W10528578		Tube, Process   (Replaces: 2194319)				$ 35.84
49	2174670		Tube, Condenser To Heat Loop		Appelez-nous	-
57	489462		Screw		Appelez-nous	-
58	482278		Start Kit		Appelez-nous	-
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 123.53
58	876764		Valve, Access(3/16``)			Immediately	$ 86.33
58	2163795		Evap. Tray		Appelez-nous	-
58	978026		Valve, Access (5/16``)			Immediately	$ 121.04
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
