SELECT A DIAGRAM

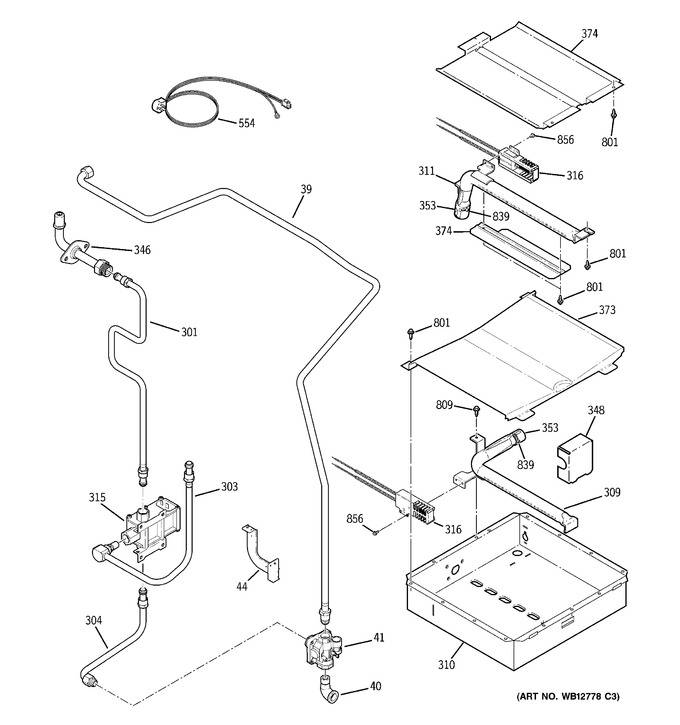

1 - Gas & Burner Parts


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


6 - Control Panel & Cooling Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
39	WB28T10144		Tube (7/16)		Appelez-nous	-
40	WB28T10091		Elbow		Appelez-nous	-
41	WG02F06369		Regulator Convert Press   (Replaces: WB19T10033)				$ 63.01
44	WB02T10190		Bracket Regulator		Appelez-nous	-
301	WB28T10095		Tube 3/8		Appelez-nous	-
303	WG02F05860		Tube 3/8   (Replaces: WB28T10094)				$ 127.56
304	WB28T10093		Tube 3/8				$ 18.63
309	WB16T10022		Burner Ovn Bake Asm		Appelez-nous	-
310	WB53T10006		Box Ovn Burn		Appelez-nous	-
311	WB16T10021		Burner Ovn Broil Asm		Appelez-nous	-
315	WG02F04553		Valve Cntl   (Replaces: WB21T10014)				$ 177.40
316	WG02F06009		Valve Gas Lr   (Replaces: WB19T10042)				$ 93.66
316	WG02F04372		Igniter Asm   (Replaces: WB13T10045)			Immediately	$ 142.65
346	WB02T10189		Fitting Br Orif		Appelez-nous	-
348	WB02T10188		Shield Orifice		Appelez-nous	-
353	WB2X9014		Air Shutter		Appelez-nous	-
373	WB34T10077		Baffle Burner		Appelez-nous	-
374	WB34T10076		Baffle Burner		Appelez-nous	-
374	WB34T10078		Baffle Bro Burn-upper		Appelez-nous	-
554	WB8K5039		Range Cord		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 14.29
839	WB1X1124		Air Shutter Screw		Appelez-nous	-
856	WG02F04011		Screw Tc10-32x.250hexni   (Replaces: WB1X1293)				$ 3.57

    View Diagram in Separate Window       Print Part List
