SELECT A DIAGRAM

1 - Microwave Control Panel


2 - Microwave Body Parts


3 - Microwave Enclosurer


4 - Microwave Door


5 - Oven Body With Microwave Support


6 - Door


7 - Door Lock

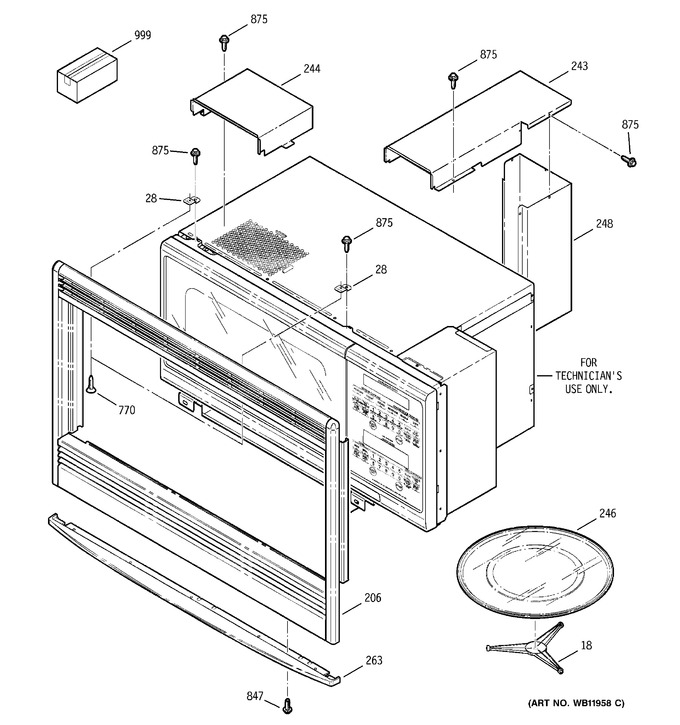

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	WB06X10168		Assy-guide Roller:p17.5		Appelez-nous	-
28	WB02T10033		Bracket Supt Trm		Appelez-nous	-
206	WB07T10104		Trim Asm (blk)		Appelez-nous	-
243	WB34T10010		Duct Air Top Rt		Appelez-nous	-
244	WB38K5056		Air Duct-top Lt		Appelez-nous	-
246	WB48T10006		Broiler Pan		Appelez-nous	-
246	WB49X690		Cooking Tray		Appelez-nous	-
248	WB34T10013		Duct Air Back		Appelez-nous	-
263	WB7K5471		I-brow Trim-black		Appelez-nous	-
770	WB01T10012		Screw 8-18 Ab Flt .375 B		Appelez-nous	-
847	WB1X1180		Screw-black		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
999	31-13682		Mini Manual &wd Asm M/w		Appelez-nous	-
999	31-13904		Mini Manual W/wire Diag		Appelez-nous	-
999	49-8923		Manual Use And Care		Appelez-nous	-
999	WB18T10046		Wire Harness-a:dobi		Appelez-nous	-
999	WB18T10109		Wire Harness F.o.d.		Appelez-nous	-
999	WB18T10153		Lck Motor Wire Harness		Appelez-nous	-
999	WB18T10205		Cntl Wire Harness		Appelez-nous	-
999	WB18T10204		Main Wire Harness		Appelez-nous	-
999	31-10433		Instructions Install		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
