SELECT A DIAGRAM

1 - Microwave Control Panel & Door


2 - Microwave Inclosurer


3 - Microwave Body


4 - Oven Body & Microwave Support


5 - Oven Door


6 - Door Lock

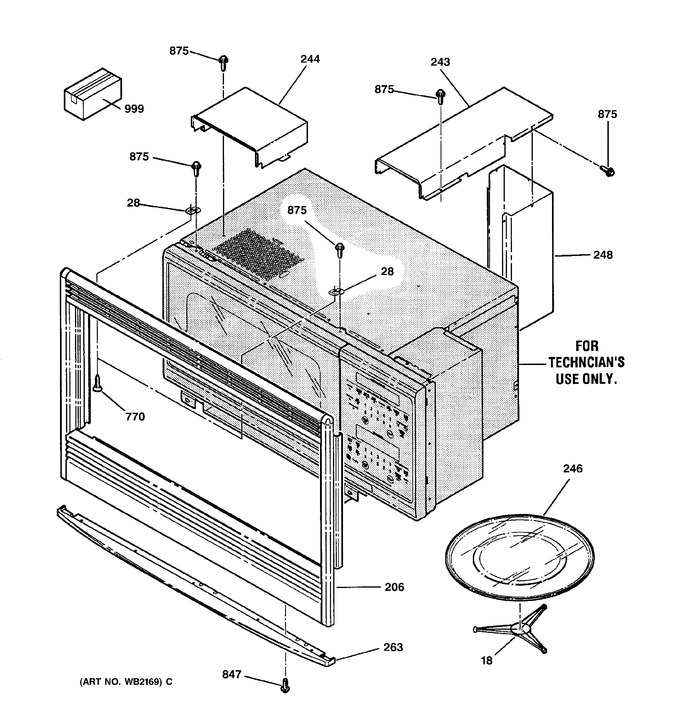

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	WB06X10168		Assy-guide Roller:p17.5		Appelez-nous	-
28	WB02T10033		Bracket Supt Trm		Appelez-nous	-
206	WB07T10103		Trim Asm (wht)		Appelez-nous	-
243	WB34T10010		Duct Air Top Rt		Appelez-nous	-
244	WB38K5056		Air Duct-top Lt		Appelez-nous	-
246	WB48T10017		Broiler Pan Grid (lg)		Appelez-nous	-
246	WB49X690		Tray Cooking		Appelez-nous	-
248	WB34T10013		Duct Air Back		Appelez-nous	-
263	WB7K5364		I-brow Trim-wht		Appelez-nous	-
770	WB01T10011		Screw 8-18 Ab Flt .375 W		Appelez-nous	-
847	WB1X1180		Screw-black		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
999	31-13666		Manual Mini & Wd Asm		Appelez-nous	-
999	31-13682		Manual Mini & Wd Asm M/w		Appelez-nous	-
999	49-8923		Manual Use And Care		Appelez-nous	-
999	WB18T10046		Wire Harness-a:dobi		Appelez-nous	-
999	WB18T10056		Harness Wire Cntl		Appelez-nous	-
999	WB18T10148		Harness Wire Main		Appelez-nous	-
999	WB18T10109		Harness Wire F.o.d.		Appelez-nous	-
999	31-10433		Instructions Install		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
