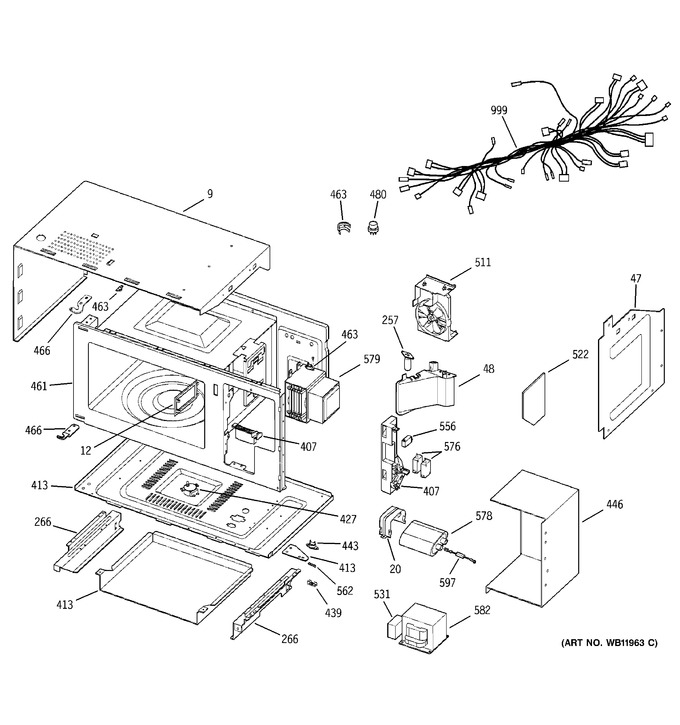

1 - Microwave Control Panel
2 - Microwave Body Parts
3 - Microwave Enclosurer
4 - Microwave Door
5 - Oven Body With Microwave Support
6 - Door
7 - Door Lock
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | WB63T10039 | Panel Outer:eg1 |
|
- | |||||
| 12 | WB6X538 | Cover-wave Guide |
|
- | |||||
| 20 | WB6X537 | Bracket H.v.c |
|
- | |||||
| 47 | WB34T10016 | Duct Right-a(27"&30") |
|
- | |||||
| 48 | WB6X535 | Cover-air |
|
- | |||||
| 257 | WB08X10012 | Lamp:125v25w |
|
$ 27.50 | |||||
| 257 | BUY LOCAL | Oven Light |
|
- | |||||
| 266 | WB63X10013 | Bkt Slide-a:30"lt |
|
- | |||||
| 266 | WB63X10016 | Bkt Slide-b:30"rt |
|
- | |||||
| 266 | WB02K10048 | Base Rail |
|
- | |||||
| 407 | WB10X10015 | Lever Door:pom |
|
- | |||||
| 407 | WB10X10016 | Body Latch:pom |
|
- | |||||
| 413 | WB63X10015 | Bracket Base Cover |
|
- | |||||
| 413 | WB63X10011 | Base Plate |
|
- | |||||
| 427 | WB26X194 | Motor-t/t |
|
- | |||||
| 439 | WB06X10050 | Fuse-holder |
|
- | |||||
| 443 | WB24X10034 | Fan Tco (60/70) |
|
- | |||||
| 446 | WB34T10017 | Duct Right-b(30") |
|
- | |||||
| 461 | WB63X10012 | Assy Cavity |
|
- | |||||
| 463 | WB24X10025 | Thermostat |
|
- | |||||
| 463 | WB21X536 | Thermostat-magnetron |
|
- | |||||
| 463 | WB6X549 | Holder-sensor |
|
- | |||||
| 466 | WB14X211 | Hinge-upper |
|
- | |||||
| 466 | WB10X10017 | Hinge Lower |
|
- | |||||
| 480 | WB27X1170 | Gas Sensor |
|
- | |||||
| 511 | WB26X10026 | Assy Cover Motor |
|
- | |||||
| 522 | WB35X10001 | Cushion Rubber |
|
- | |||||
| 531 | WB35X10002 | Cushion-hvt |
|
- | |||||
| 556 | WG02F01559 | Switch-micro (Replaces: WB24X830) |
|
$ 27.16 | |||||
| 562 | WB27X10247 | Fuse Bussman 250v20a |
|
- | |||||
| 576 | WB24X829 | Switch-micro |
|
- | |||||
| 578 | WB27X10073 | Capacitor |
|
- | |||||
| 579 | WB27X1156 | Magnetron |
|
- | |||||
| 582 | WB27X10189 | Trans-h.v |
|
- | |||||
| 597 | WB27X1160 | Diode Hv Ass'y |
|
- | |||||
| 999 | WB18T10208 | Harness Wire Main |
|
- | |||||
| 999 | WB18T10109 | Wire Harness F.o.d. |
|
- | |||||
| 999 | 31-10433 | Instructions Install |
|
- | |||||
| 999 | 31-13682 | Mini Manual &wd Asm M/w |
|
- | |||||
| 999 | 31-13804 | Mini-manual & Wd Asm |
|
- | |||||
| 999 | 49-8923 | Manual Use And Care |
|
- | |||||
| 999 | WB18T10046 | Wire Harness-a:dobi |
|
- | |||||
| 999 | WB18T10056 | Harness Wire Cntl |
|
- | |||||
| 999 | WB18T10153 | Lck Motor Wire Harness |
|
- |
