1 - Microwave Control Panel & Door
2 - Microwave Body
3 - Microwave Inclosurer
4 - Body With Microwave Support
5 - Oven Door
6 - Fan Assembly
7 - Door Lock
SELECT A DIAGRAM
New Model Search:

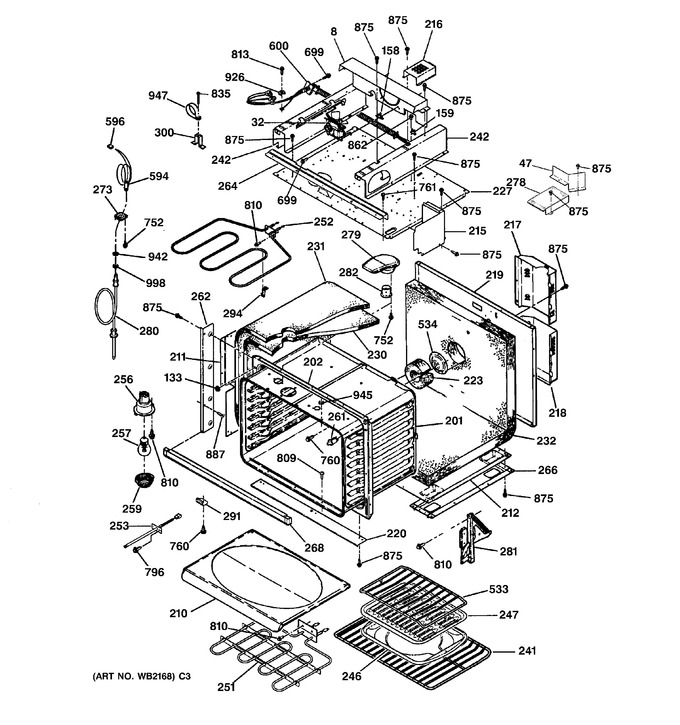

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WB02T10020 | Support Fan |
|
- | |||||
| 32 | WG02F05326 | Fan Asm (Replaces: WB26K5061) |
|
$ 188.08 | |||||
| 47 | WB39T10003 | Air Deflector |
|
- | |||||
| 47 | WB34T10016 | Duct Right-a(27"&30") |
|
- | |||||
| 133 | WB1K5115 | Felt Pad |
|
- | |||||
| 133 | WG02F03972 | Bumper Door (Replaces: WB01T10022) |
|
$ 5.72 | |||||
| 133 | WB01T10026 | Door Pad |
|
- | |||||
| 158 | WB24T10033 | Limit Switch |
|
- | |||||
| 159 | WB24K5135 | Limit Switch |
|
- | |||||
| 201 | WB63T10033 | Wrapper Ovn Cav Asm |
|
- | |||||
| 202 | WB63T10058 | Front Frame |
|
- | |||||
| 210 | WB63T10034 | Bottom False Asm |
|
- | |||||
| 211 | WB2K5306 | Side Insulation Retainer |
|
- | |||||
| 212 | WB2K5305 | Bttm Insulation Retainer |
|
- | |||||
| 215 | WB34T10009 | Cover Wire Side |
|
- | |||||
| 216 | WB34K5234 | Top Wire Cover |
|
- | |||||
| 217 | WB34K5193 | Cover Wire Upr Rr |
|
- | |||||
| 218 | WB34K5192 | Cover Wire Lwr Rr |
|
- | |||||
| 219 | WB2K5307 | Back Insulation Retainer |
|
- | |||||
| 220 | WB34K5195 | Shield Btm Trim |
|
- | |||||
| 223 | WB35K5117 | Insulation Ovn Supt |
|
- | |||||
| 227 | WB02T10082 | Retainer Insln Top |
|
- | |||||
| 230 | WB35K5118 | Insulation Top/sds (inr) |
|
- | |||||
| 231 | WB35K5119 | Insulation Top/sds (out) |
|
- | |||||
| 232 | WB35K5116 | Insulation Back & Btm |
|
- | |||||
| 241 | WB48K5022 | Oven Rack-convx |
|
- | |||||
| 242 | WB2K5384 | Slide Rail-rt |
|
- | |||||
| 242 | WB2K5385 | Slide Rail-lt |
|
- | |||||
| 246 | WB48T10006 | Pan Broil (261d656p010) |
|
- | |||||
| 246 | WB49X690 | Tray Cooking |
|
- | |||||
| 247 | WB48T10005 | Grid Bro Pan |
|
- | |||||
| 251 | WB44T10006 | Element Bake (3400w) |
|
- | |||||
| 252 | WB44K5017 | Broil Element |
|
- | |||||
| 253 | WS01F02431 | Sensor-oven (Replaces: WB23X5340) |
|
Immediately | $ 27.18 | ||||
| 256 | WG02F01227 | Oven Lamp Holder (Replaces: WB08T10002) |
|
$ 57.24 | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 257 | WB08X10012 | Lamp:125v25w |
|
$ 27.50 | |||||
| 259 | WG02F05612 | Oven Bulb Lens (Replaces: WB25T10002) |
|
Immediately | $ 25.73 | ||||
| 261 | 318394803 | Oven Door Light Switch (Replaces: WB24K5031) |
|
Immediately | $ 44.23 | ||||
| 262 | WB7K5416 | Vert Side Trim-rt-blk |
|
- | |||||
| 262 | WB7K5417 | Vert Side Trim-lt-blk |
|
- | |||||
| 264 | WB07T10177 | Inner Vent Trim |
|
- | |||||
| 266 | WB63X10013 | Bkt Slide-a:30"lt |
|
- | |||||
| 266 | WB2K5356 | Base Rail |
|
- | |||||
| 266 | WB63X10016 | Bkt Slide-b:30"rt |
|
- | |||||
| 268 | WB07T10037 | Trim Btm (blk) |
|
- | |||||
| 273 | WB34K5140 | Pr0be Cover |
|
- | |||||
| 279 | WB38T10014 | Box Vnt Asm |
|
- | |||||
| 280 | WB20X5050 | Probe |
|
- | |||||
| 281 | WG02F02082 | Hinge Asm Lt (Replaces: WB14T10006) |
|
$ 123.04 | |||||
| 281 | WB14T10005 | Hinge Asm Rt |
|
- | |||||
| 282 | WB28K5010 | Vent Tube |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Element Bro Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 300 | WB2X9896 | Spacer |
|
- | |||||
| 533 | WB48X5108 | Roast Rack |
|
- | |||||
| 534 | WB26T10003 | Support Ovn Cavity |
|
- | |||||
| 594 | WB8K5056 | Jack Receptacle |
|
- | |||||
| 596 | WB8K5013 | Housing Asm Receptacle |
|
- | |||||
| 600 | WB18K5628 | Conduit Wire Harness |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16x.437hex Zn |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 835 | WB1X1123 | Screw |
|
- | |||||
| 862 | WB1X1178 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 887 | WG02A00783 | Trim Screw-blk (Replaces: WB1K5173) |
|
$ 3.57 | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 945 | WB1K5046 | Lockwasher |
|
- | |||||
| 947 | WB1K5043 | Clip Cable Nylon |
|
- | |||||
| 998 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 |
