SELECT A DIAGRAM

1 - Microwave Control Panel


2 - Microwave Body Parts


3 - Microwave Enclosurer


4 - Microwave Door


5 - Oven Body With Microwave Support


6 - Door


7 - Door Lock


8 - Convection Fan

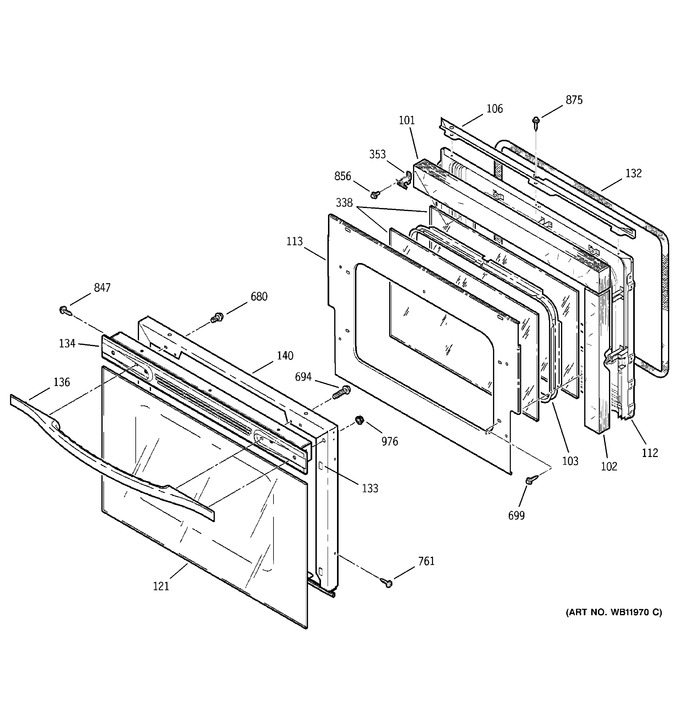

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35K5097		Oven Door Insulation		Appelez-nous	-
103	WB2K5321		Window Spacer		Appelez-nous	-
106	WB07K10138		Dr Trim Shield		Appelez-nous	-
112	WB55T10017		Ov Dr Linning Asm		Appelez-nous	-
113	WB2K5322		Insulation Retainer		Appelez-nous	-
121	WB57T10180		Glass Ovn Dr Otr (wht)		Appelez-nous	-
132	WB04T10008		Ov Dr Gasket		Appelez-nous	-
133	WG02F03972		Door Bumper   (Replaces: WB01T10022)				$ 5.72
133	WG02F03973		Foam Tape-door   (Replaces: WB01T10052)				$ 3.57
134	WB7K5429		Trim Asm-white		Appelez-nous	-
136	WB15K5110		Door Handle-white		Appelez-nous	-
140	WB56T10079		Frame Ovn Dr Asm (wht)		Appelez-nous	-
338	WS01L00806		Window Pack Kit Lg   (Replaces: WB56K20)			Immediately	$ 72.07
353	WB2X8320		Window Clip		Appelez-nous	-
680	WR1X1850		Scr 7-19 Hxw 1/2		Appelez-nous	-
694	WG02A00792		Screw   (Replaces: WB1K5157)				$ 3.57
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
761	WB1K5185		Screw-white		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
847	WB1K5161		Screw-white		Appelez-nous	-
856	WG02F04011		Screw Tc10-32x.250hexni   (Replaces: WB1X1293)				$ 3.57
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
976	WB1K5199		Pal Nut		Appelez-nous	-
