SELECT A DIAGRAM

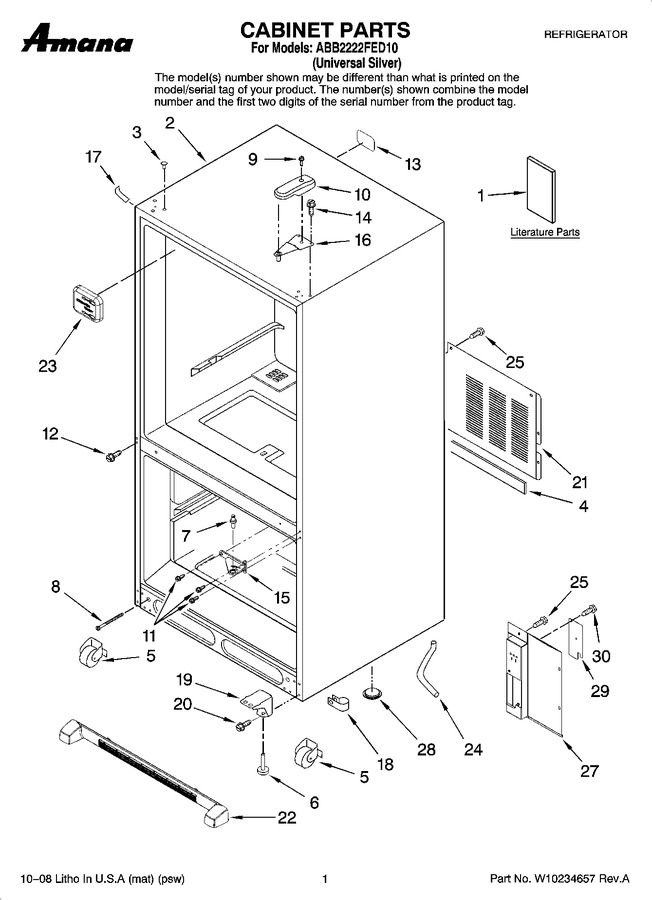

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175445		Use & Care Guide		Appelez-nous	-
1	W10184250		Energy Guide		Appelez-nous	-
1	W10165418		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: 67001131)			Immediately	$ 7.34
4	B5759649		Gasket		Appelez-nous	-
5	12580304		Roller Assembly				$ 5.84
6	W11177593		Foot Brake   (Replaces: 67003868)				$ 10.96
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.90
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 6.37
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 6.80
10	67001012		Cover Hinge (black)				$ 44.74
11	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 7.59
12	W11573362		Screw   (Replaces: 67006380)				$ 13.25
13	W11685757		Label, Fl Tb Plug   (Replaces: 67005064)				$ 6.67
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.59
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 150.62
16	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 42.42
17	67003485		Cover, Corner (black)			Immediately	$ 19.93
18	W10157973		Clip, Drain				$ 7.80
19	W10208641		Foot, Cabinet		Appelez-nous	-
20	67006564		Screw			Immediately	$ 7.34
21	67006102		Cover, Unit		Appelez-nous	-
22	WPW10534162		Grille Assembly (includes Clips) (black)   (Replaces: 67006954)				$ 133.34
23	WP67001098		Cover, Fl Tb   (Replaces: 67001098)				$ 7.59
24	W10164397		Tube, Drain				$ 13.98
25	67006425		Screw (9)			Immediately	$ 6.57
27	67001097		Cover, Water Valve		Appelez-nous	-
28	A3076901		Plug-button				$ 5.70
29	12479901		Plate, Cover		Appelez-nous	-
30	WP489128		Screw   (Replaces: 67006662)				$ 10.26
