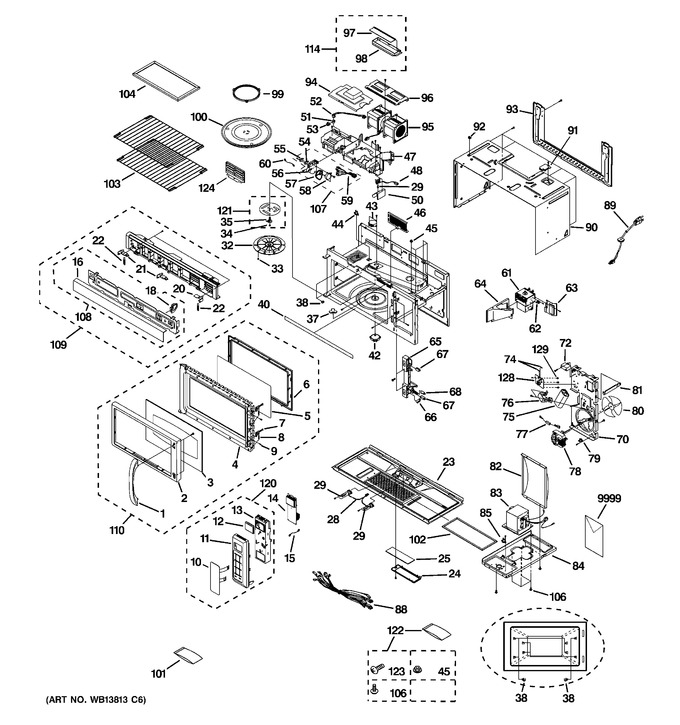

1 - Microwave
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB15X10096 | Handle |
|
- | |||||
| 2 | WB55X10476 | Door Outer Frame |
|
- | |||||
| 3 | WB36X10232 | Screen-door(b) |
|
- | |||||
| 4 | WB55X10830 | Asm Door E |
|
- | |||||
| 5 | WB06X10332 | Film-door |
|
- | |||||
| 6 | WB55X10442 | Choke Cover |
|
- | |||||
| 7 | WB05X10007 | Door-key |
|
- | |||||
| 8 | WB05X10006 | Spring-key |
|
- | |||||
| 9 | WB06X10060 | Pin-hinge |
|
- | |||||
| 10 | WB27X10677 | Key Panel |
|
- | |||||
| 11 | WB07X10417 | Frame Control Panel |
|
- | |||||
| 12 | WB36X10166 | Window-display |
|
- | |||||
| 13 | WB06X10294 | Bkt C/panel Asm |
|
- | |||||
| 14 | WB27X10947 | Smart Board |
|
- | |||||
| 15 | WB18X10139 | Wire Grnd Pcb |
|
- | |||||
| 16 | WB06X10448 | Cover-grille |
|
- | |||||
| 18 | WB06X10449 | Bracket-barrier Grille |
|
- | |||||
| 20 | WB02X10753 | Hinge-grille (r) |
|
- | |||||
| 21 | WB02X10755 | Hinge-grille (l) |
|
- | |||||
| 22 | WG02A01346 | Spring-louver (Replaces: WB09X10018) |
|
$ 6.09 | |||||
| 23 | WB56X10682 | Base Bottom Sub Asm |
|
- | |||||
| 24 | WB36X10216 | Cover-glass |
|
- | |||||
| 25 | WG02L00282 | Glass-cooktop Lamp (Replaces: WB36X10071) |
|
$ 9.20 | |||||
| 28 | WG02F01490 | Socket Lamp (Replaces: WB08X10026) |
|
$ 49.56 | |||||
| 29 | WG03F00381 | Bulb Halogen (120v 20w) (Replaces: WB36X10213) |
|
Immediately | $ 28.65 | ||||
| 32 | WB06X10130 | Cover-stirrer |
|
- | |||||
| 33 | WB06X10126 | Button-lock |
|
- | |||||
| 34 | WB06X10340 | Holder-tip |
|
- | |||||
| 35 | WB06X10286 | Holder-stirrer |
|
- | |||||
| 37 | WG02F05328 | Coupler-tt (Replaces: WB06X10144) |
|
$ 15.18 | |||||
| 38 | WB06X10521 | Holder-rack |
|
- | |||||
| 40 | 40-40175-1 | Label-cooking Guide |
|
- | |||||
| 42 | WB26X10208 | Motor Turntable |
|
$ 30.25 | |||||
| 43 | WG02F04026 | Motor Stirrer (Replaces: WB26X10037) |
|
$ 47.61 | |||||
| 44 | WG02F01631 | Tco Cavity (Replaces: WB27X10810) |
|
$ 38.59 | |||||
| 45 | WB01X10065 | Nut Magnetron |
|
- | |||||
| 46 | WB06X10290 | Cover-front |
|
- | |||||
| 47 | WB26X10091 | Duct-upper |
|
- | |||||
| 48 | WB08X10027 | Socket Hal/lamp Asm |
|
- | |||||
| 50 | WB06X10447 | Cover-halogen Lamp |
|
- | |||||
| 51 | WB24X799 | Sensor-gas |
|
- | |||||
| 52 | WB18X10057 | Wire Harness-s |
|
- | |||||
| 53 | WB6X549 | Holder-sensor |
|
- | |||||
| 54 | WB24X10070 | Switch-micro |
|
- | |||||
| 55 | WB24X10069 | Switch-micro |
|
- | |||||
| 56 | WB06X10283 | Bracket-cam Plate |
|
- | |||||
| 57 | WB38X10057 | Cam-louver |
|
- | |||||
| 58 | WB26X10112 | Motor-drive |
|
- | |||||
| 59 | WB18X10203 | Wire Harness-cam |
|
- | |||||
| 60 | WB18X10140 | Wire Lead-f |
|
- | |||||
| 61 | WB27X10880 | Asm-magnetron |
|
- | |||||
| 62 | WB27X10166 | Tco - Magnetron |
|
- | |||||
| 63 | WB06X10325 | Bracket-mgt |
|
- | |||||
| 64 | WB06X10295 | Guide Air Asm |
|
- | |||||
| 65 | WB06X10676 | Latch-body |
|
- | |||||
| 66 | WG02L00668 | Lever-switch Lower (Replaces: WB06X10128) |
|
$ 15.54 | |||||
| 67 | WB24X10038 | Switch-micro |
|
- | |||||
| 68 | WB24X10075 | Switch-micro |
|
- | |||||
| 70 | WB06X10464 | Cover Motor Asm |
|
- | |||||
| 72 | WB27X10170 | Capacitor-motor |
|
- | |||||
| 74 | WB27X10474 | Fuse |
|
- | |||||
| 75 | WG02F00257 | Capacitor (Replaces: WB27X10011) |
|
$ 58.80 | |||||
| 76 | WB06X10287 | Bracket-hvc |
|
- | |||||
| 77 | WB27X10817 | H.v. Diode |
|
- | |||||
| 78 | WB26X10089 | Motor-fan |
|
- | |||||
| 79 | WB27X10194 | Tco Hood |
|
- | |||||
| 80 | WB26X10090 | Blade-fan |
|
- | |||||
| 81 | WB06X10284 | Supporter-cavity |
|
- | |||||
| 82 | WB26X10092 | Duct Rear Asm |
|
- | |||||
| 83 | WB27X10867 | H.v. Transformer |
|
- | |||||
| 84 | WB56X10690 | Base Plate |
|
- | |||||
| 85 | WB21X535 | Tco -bottom |
|
- | |||||
| 88 | WB18X10341 | Wire Harness - A |
|
- | |||||
| 89 | WB18X10200 | Power Cord Asm |
|
- | |||||
| 90 | WB56X10195 | Case Outer |
|
- | |||||
| 91 | WB06X10122 | Bracket-power Cord |
|
- | |||||
| 92 | WG02A00187 | Holder Nut Asm (Replaces: WB01X10071) |
|
$ 10.81 | |||||
| 93 | WB56X10260 | Plate Mounting Asm |
|
- | |||||
| 94 | WB06X10446 | Bkt Duct Upper Asm |
|
- | |||||
| 95 | WB26X10210 | Motor Ventilation |
|
- | |||||
| 96 | WB06X10165 | Bracket-v/t Motor |
|
- | |||||
| 97 | DE72-40022A | Damper-main (Replaces: WB06X10133) |
|
Immediately | $ 12.46 | ||||
| 98 | WB06X10129 | Cover-damper |
|
- | |||||
| 99 | DE92-90189V | Guide Roller - Asm (Replaces: WB06X10001) |
|
$ 40.98 | |||||
| 100 | WB49X10063 | Tray-cooking |
|
- | |||||
| 101 | WG02F05550 | Hardware Asm (Replaces: WB01X10181) |
|
Immediately | $ 45.47 | ||||
| 102 | WG02F00523 | Filter-air (Replaces: WB06X10596) |
|
Immediately | $ 66.42 | ||||
| 103 | DE75-00046A | Wire Rack Asm (Replaces: WB48X10052) |
|
$ 54.75 | |||||
| 104 | WG02F00239 | Charcoal Filter(option) (Replaces: WB02X10733) |
|
Immediately | $ 128.76 | ||||
| 106 | WB01X10084 | Screw-washer Hvt |
|
- | |||||
| 107 | WB07X10416 | Cam Louver Asm |
|
- | |||||
| 108 | WB36X10172 | Cover Grille Asm |
|
- | |||||
| 109 | WB07X10418 | Grille Asm |
|
- | |||||
| 110 | WB56X10340 | Door Asm |
|
- | |||||
| 114 | WB06X10436 | Hood Damper Asm |
|
- | |||||
| 120 | WB07X10626 | Control Panel Asm |
|
- | |||||
| 121 | WB06X10331 | Stirrer Asm |
|
- | |||||
| 122 | WB01X10183 | Hardware Bag |
|
- | |||||
| 123 | WB01X10193 | Screw-tap Ph |
|
- | |||||
| 124 | WB02X10955 | Bkt-barrier |
|
- | |||||
| 128 | WG04F00433 | Noise Filter (Replaces: WB02X11244) |
|
$ 120.98 | |||||
| 129 | WB4X175 | Supporter-pcb |
|
- | |||||
| 9999 | 49-40539 | Rear Wall Template |
|
- | |||||
| 9999 | 49-40538 | Installation Instruction |
|
- | |||||
| 9999 | 31-40053 | Mini Manual |
|
- | |||||
| 9999 | 49-40137-1 | Template-top |
|
- | |||||
| 9999 | 49-40537 | Use & Care |
|
- |
