SELECT A DIAGRAM

01 - Cabinet


02 - Liner

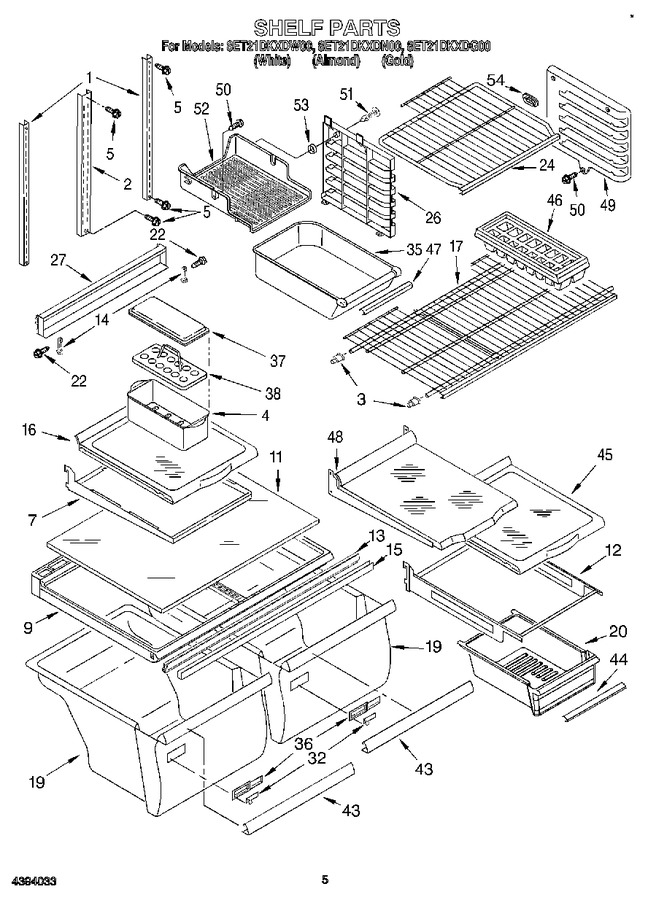

03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172637		Shelf, Ladder (2)		Appelez-nous	-
2	2172638		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
7	2174447		Frame Assembly, Shelf (2)				$ 79.10
9	WP2314549		Crisper Cover   (Replaces: 2176234)				$ 279.10
11	WP2176225		Glass, Crisper Cover   (Replaces: 2176235)				$ 264.41
12	2179717		Frame Assembly, Meat Shelf		Appelez-nous	-
13	2172684		Gasket, Crisper Cover		Appelez-nous	-
14	2169608		Hook, Shelf		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	WP999520		Shelf Assembly, Spillguard (2)   (Replaces: 2174642)				$ 273.62
17	2166223		Shelf, Freezer		Appelez-nous	-
19	W10854037		Pan, Crisper Wide   (Replaces: 2179701)			Immediately	$ 179.19
20	WP2218132K		Pan, Meat   (Replaces: 2176282)			Immediately	$ 171.43
22	489419		Screw		Appelez-nous	-
24	2166112		Shelf, Freezer (top)		Appelez-nous	-
26	2172696		Bracket, Shelf Mounting (l.s.)		Appelez-nous	-
27	2176241		Track Assembly, Shelf		Appelez-nous	-
32	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
35	2174616		Ice Bucket		Appelez-nous	-
36	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 15.81
37	2169935		Cover		Appelez-nous	-
38	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
43	2176353		Trim, Crisper Pan		Appelez-nous	-
44	2176357		Trim, Meat Pan				$ 33.74
45	WP999520		Shelf Assembly, Spillguard   (Replaces: 2174646)				$ 273.62
46	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 47.84
47	2176360		Trim, Ice Bucket		Appelez-nous	-
48	2174469		Shelf Assembly, Spillguard		Appelez-nous	-
49	2172625		Bracket, Shelf Mounting (r.s.)		Appelez-nous	-
50	WP489442		Screw   (Replaces: 489438)			Immediately	$ 11.49
51	2176270		Fastener		Appelez-nous	-
52	2172626		Shelf, Ice Tray		Appelez-nous	-
53	2176292		Support, Ice Tray Shelf		Appelez-nous	-
54	2166255		Plug, Shelf Cup		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
