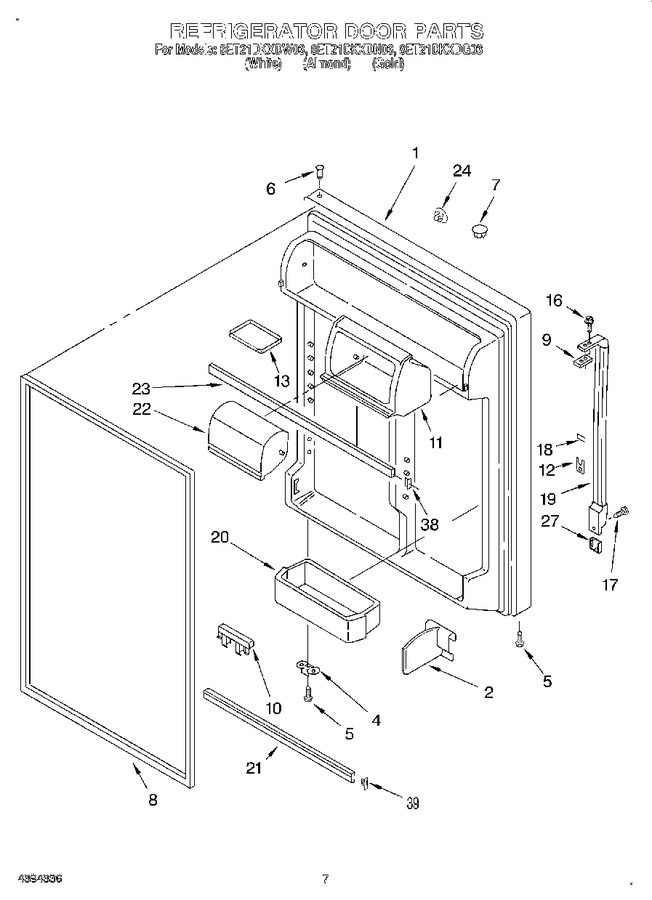

04 - Refrigerator Door
05 - Unit
06 - Freezer Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2171202 | Refrigerator Door (includes No.6 & No.8) (white) |
|
- | |||||
| 1 | 2170478 | Refrigerator Door (includes No.6 & No.8) (gold) |
|
- | |||||
| 1 | 2171239 | Refrigerator Door (includes No.6 & No.8) (almond) |
|
- | |||||
| 2 | 2171284 | Divider, Door Bin |
|
- | |||||
| 4 | 944035 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug (black) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 2177311 | Door Gasket, Magnetic (black) |
|
$ 330.95 | |||||
| 8 | 2159061 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 183.67 | ||||
| 9 | 2151813 | Shim, Handle |
|
- | |||||
| 10 | 2173643 | Tall Bottle Retainer |
|
- | |||||
| 11 | 2156064 | Housing Compartment |
|
- | |||||
| 12 | 2183124 | Shim, Handle |
|
- | |||||
| 13 | 2159302 | Tray, Door |
|
$ 42.08 | |||||
| 16 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | 2179398 | Shim, Handle |
|
- | |||||
| 19 | 2179312 | Handle (almond) |
|
- | |||||
| 19 | 2179313 | Handle (black) |
|
- | |||||
| 19 | 2179311 | Handle (white) |
|
- | |||||
| 20 | WP2204813 | Bin, Door Shelf (4) (Replaces: 2179606) |
|
Immediately | $ 81.20 | ||||
| 21 | WPW10421486 | Trim, Door Shelf (Replaces: 2177261) |
|
$ 114.74 | |||||
| 22 | 2182402 | Door Compartment |
|
- | |||||
| 23 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 24 | 1122654 | Hole Plug, Handle (almond) |
|
- | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 24 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2160809) |
|
$ 7.61 | |||||
| 27 | 2174008 | Cover, Endcap (black) |
|
- | |||||
| 27 | 2174006 | Cover, Endcap (white) |
|
- | |||||
| 27 | 2174007 | Cover, End Cap (almond) |
|
- | |||||
| 38 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 39 | 2159300 | Plug-trim |
|
$ 4.83 |
