SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional

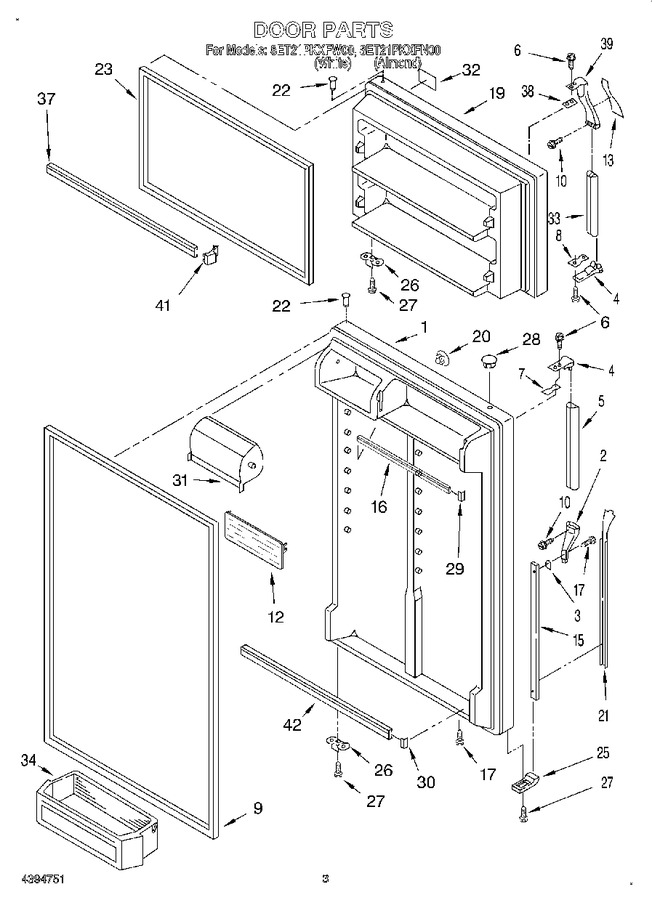

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023679		Refrigerator Door (includes No.9 & No.22) (white)   (Replaces: 2183920)				$ 758.35
1	2183921		Refrigerator Door (includes No.9 & No.22) (almond)		Appelez-nous	-
2	1109189		End Cap		Appelez-nous	-
3	935075		Shim		Appelez-nous	-
4	944157		End Cap, Handle (2)		Appelez-nous	-
5	2150150		Handle, Center		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.98
7	943188		Spacer				$ 7.80
8	935074		Shim		Appelez-nous	-
9	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 183.67
10	489022		Screw		Appelez-nous	-
12	WP2188236		Shelf, Flip-up   (Replaces: 2159304)				$ 64.38
13	1108828		Insert, Handle		Appelez-nous	-
15	2159417		Retainer		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 124.32
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
19	2184400		Freezer Door (includes No.22 & No.23) (almond)		Appelez-nous	-
19	W11023679		Freezer Door (includes No.22 & No.23) (white)   (Replaces: 2182489)				$ 758.35
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.77
21	2166438		Insert, Handle		Appelez-nous	-
22	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
23	2159060		Door Gasket, Magnetic (mist Beige)				$ 336.01
25	1105804		Endcap		Appelez-nous	-
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218118		Compartment Door   (Replaces: 2177130)				$ 81.92
32	2175383		Nameplate		Appelez-nous	-
33	2173622		Handle, F.c.		Appelez-nous	-
34	WP2204812		Bin, Door Shelf   (Replaces: 2195395)				$ 80.45
37	2171265		Trim-door (2)		Appelez-nous	-
38	943187		Shim				$ 25.14
39	944163		Handle End,				$ 53.54
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
42	WPW10421486		Trim, Door   (Replaces: 2177261)				$ 114.74
100	2182571		Featurepak (includes 12,16, 29,30,31,34,37, 41,42) Also See Shelf Page.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
