1 - Freezer Door
2 - Fresh Food Door
3 - Freezer Section
4 - Evaporator Instructions
5 - Fresh Food Section
6 - Fresh Food Shelves
7 - Unit Parts
SELECT A DIAGRAM
New Model Search:

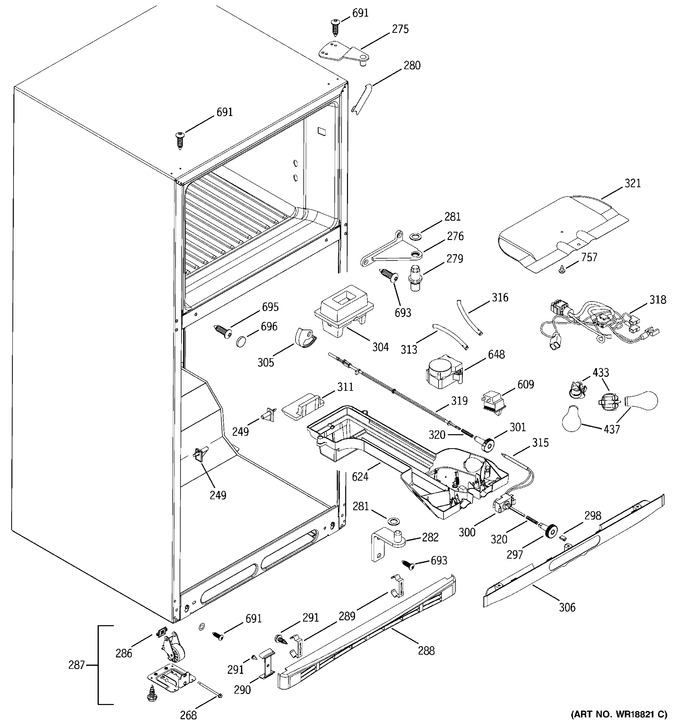

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 249 | WR02X10736 | Support Twist Vp |
|
- | |||||
| 268 | WR01X10219 | Screw Mobility |
|
- | |||||
| 275 | WG03L05291 | Hinge Top & Asm (Replaces: WR13X10101) |
|
$ 28.58 | |||||
| 276 | WR13X10139 | Hinge Center Asm Wh |
|
- | |||||
| 279 | WR13X587 | Pin Hinge Ctr |
|
- | |||||
| 280 | WG03L00745 | Cap Corner Oc Wh (Replaces: WR02X10703) |
|
$ 6.09 | |||||
| 281 | WG03L08792 | Washer Hinge Brown (Replaces: WR01X10146) |
|
Immediately | $ 3.57 | ||||
| 282 | WG03L01417 | Hinge Btm & Pin Asm Wh (Replaces: WR13X10138) |
|
$ 32.55 | |||||
| 286 | WR1X1815 | Leveling Nut |
|
- | |||||
| 287 | WR02X10722 | Mobility Asm |
|
- | |||||
| 288 | WR74X10068 | Grille Base Wh |
|
- | |||||
| 289 | WR02X10738 | Clip Grille |
|
- | |||||
| 290 | WR02X10711 | Cap Grille Base Wh |
|
- | |||||
| 291 | WR01A01034 | Scr 8-10 Pl Pnp 1/2 S (Replaces: WR01X10221) |
|
$ 4.20 | |||||
| 297 | WR02X10720 | Knob Thumb Cntrl Ff Cc |
|
- | |||||
| 298 | WR01X10216 | Retainer Knob |
|
- | |||||
| 300 | WG03F07368 | Control Temp (Replaces: WR09X10073) |
|
Immediately | $ 125.90 | ||||
| 301 | WR02X10721 | Knob Thumb Con. Fz Dmpr |
|
- | |||||
| 304 | WR02X10723 | Nozzle Control Foam |
|
- | |||||
| 305 | WR02X10734 | Wheel Damper |
|
- | |||||
| 306 | WR17X10853 | Housing Cntrl Front Asm |
|
- | |||||
| 311 | WR02X10709 | Block Foam Control |
|
- | |||||
| 313 | WR02X10747 | Pipe Light Damper Knob |
|
- | |||||
| 315 | WR02X11006 | Sleeve Vinyl |
|
- | |||||
| 316 | WR02X10748 | Pipe Light Control Knob |
|
- | |||||
| 318 | WR23X10206 | Harness Cntrl Module |
|
- | |||||
| 319 | WR02X10727 | Shaft Damper |
|
- | |||||
| 320 | WR01A00585 | Spring Knob (Replaces: WR01X10220) |
|
$ 30.98 | |||||
| 321 | WR02X10731 | Shield Reflector Ff |
|
- | |||||
| 433 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 437 | 60A | Lamp 60w Appl |
|
- | |||||
| 609 | WG03F09086 | Switch Light Ff/fz (Replaces: WR23X10143) |
|
Immediately | $ 10.01 | ||||
| 624 | WR17X10855 | Housing Control Rear |
|
- | |||||
| 648 | WG03F00975 | Control Defrost (Replaces: WR9X503) |
|
Immediately | $ 74.46 | ||||
| 691 | WG03A00052 | Screw 12-24 .7 Wh (Replaces: WR1X2138) |
|
$ 4.20 | |||||
| 693 | WG03A00435 | Screw 12-24 .9 Wh (Replaces: WR1X2136) |
|
$ 4.20 | |||||
| 695 | WR01X10218 | Scr 12-24 Tt Bht 20 .73s |
|
- | |||||
| 696 | WR02X10824 | Cover Screw Wh |
|
- | |||||
| 757 | WR1X2035 | Fastener Push |
|
- |
