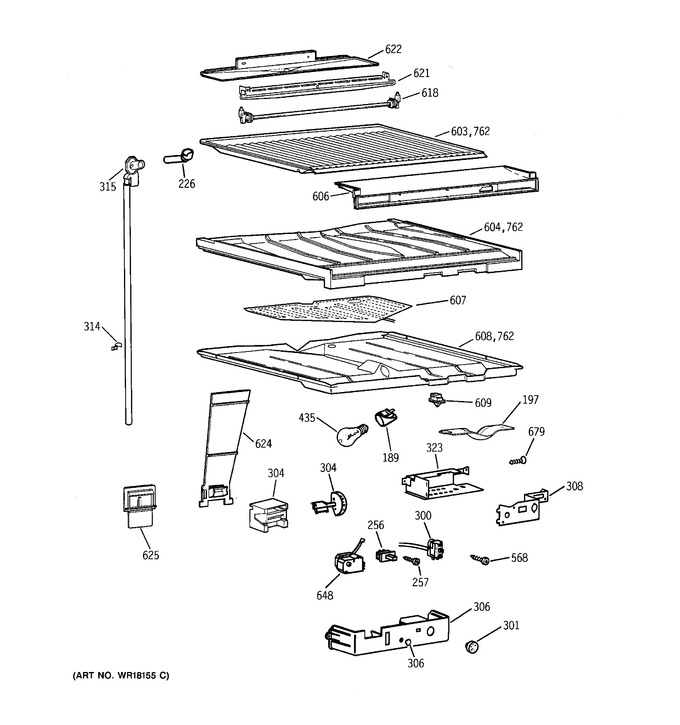

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
189	WR2X9014		Socket & Term Asm Fz		Appelez-nous	-
197	WR2X9013		Shield Light		Appelez-nous	-
226	WG03A00378		Funnel Drain   (Replaces: WR2X7640)				$ 10.72
256	WR23X408		Switch Power Saver		Appelez-nous	-
257	WR1X1762		Screw		Appelez-nous	-
300	WG03L00275		Sleeve Vinyl   (Replaces: WR2X8344)				$ 30.98
300	WR9X540		Control Temp		Appelez-nous	-
301	WR2X8715		Knob Temp Control		Appelez-nous	-
304	WR2X8363		Nozzle Foam		Appelez-nous	-
304	WR2X8694		Shaft / Knob Damper		Appelez-nous	-
306	WR2X7652		Plug Button		Appelez-nous	-
306	WR17X3196		Housing Control		Appelez-nous	-
308	WR2X7768		Bracket Control Hsg		Appelez-nous	-
314	WR2X8503		Clamp Tube		Appelez-nous	-
315	WR2X8504		Grommet Drain		Appelez-nous	-
323	WR2X7767		Brkt Control Back		Appelez-nous	-
435	STD372402		Lamp		Appelez-nous	-
568	WZ05X0137		Screw		Appelez-nous	-
603	WR17X2275		Liner Btm Fz		Appelez-nous	-
604	WR17X3494		Insul Divider		Appelez-nous	-
606	WR17X2385		Front Liner Fz		Appelez-nous	-
607	WR51X388		Heater Insul Asm Ff		Appelez-nous	-
608	WR17X2774		Liner Top Ff		Appelez-nous	-
609	WR23X359		Switch Light		Appelez-nous	-
618	WR51X367		Heater & Brkt Asm		Appelez-nous	-
621	WR2X8912		Bracket Def Htr		Appelez-nous	-
622	WR17X2283		Trough Drain		Appelez-nous	-
622	WR14X357		Gasket Trough		Appelez-nous	-
624	WR17X3649		Cover Ff Supply		Appelez-nous	-
625	WR17X3477		Cover Duct Asm Rh		Appelez-nous	-
625	WR17X3476		Cover Duct Asm Lh		Appelez-nous	-
648	WG03F00975		Control Defrost   (Replaces: WR9X502)			Immediately	$ 74.46
679	WZ06X0133		Screw		Appelez-nous	-
762	WR14X313		Foam Strip		Appelez-nous	-
