SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet Parts


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts

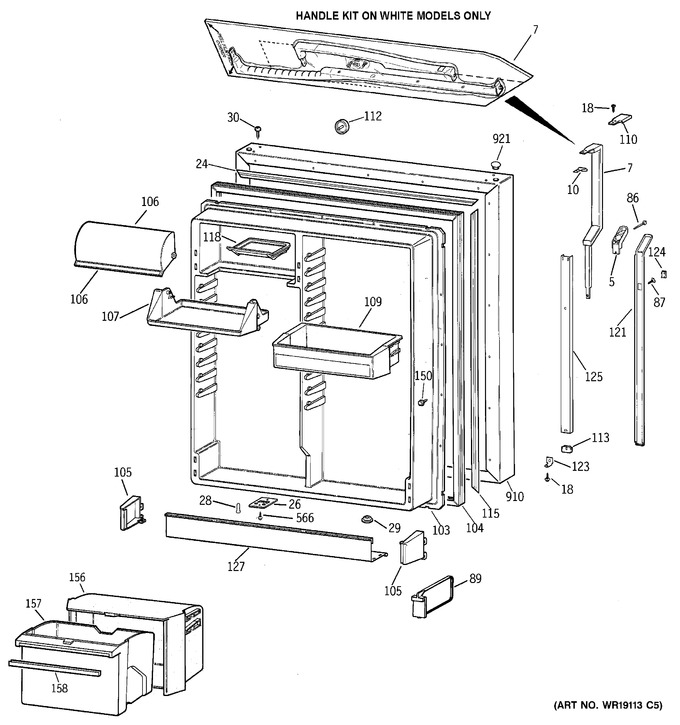

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR2X8714		Cap End		Appelez-nous	-
7	WR12X889		Handle Ff Ad		Appelez-nous	-
10	WR2X8002		Shim Handle Door		Appelez-nous	-
18	WR1X1727		Scr 10-16 X 3/4		Appelez-nous	-
24	WR17X2136		Retainer Strip H		Appelez-nous	-
26	WR2X9016		Stop Door		Appelez-nous	-
28	WR2X7627		Thimble Door Plastic		Appelez-nous	-
29	WR2X8088		Plug Button Insert Ad		Appelez-nous	-
30	WR1X5475		Screw		Appelez-nous	-
86	WH2X940		Scr 8-32 Tt Fl 1/2 S		Appelez-nous	-
87	WZ04X0241		Screw		Appelez-nous	-
89	WR2X7971		Snugger Module		Appelez-nous	-
103	WR77X605		Door Inner Ff		Appelez-nous	-
104	WR24X437		Gasket O.door Ff Wh		Appelez-nous	-
105	WR2X8700		Cap Shelf Front Rh		Appelez-nous	-
105	WR2X8699		Cap Shelf Front Lh		Appelez-nous	-
106	WR38X1989		Trim Dairy Door		Appelez-nous	-
106	WR22X426		Door Dairy (no Trim)		Appelez-nous	-
107	WR22X471		Extension Dairy		Appelez-nous	-
109	WR71X2346		Shelf Module Asm		Appelez-nous	-
110	WR2X8210		Cap Top		Appelez-nous	-
112	WR2X8697		Plug Door Rvsbl Ad		Appelez-nous	-
113	WR2X7980		Cap Trim Handle Btm		Appelez-nous	-
115	WR17X2137		Retainer Strip V		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
121	WR12X900		Insert Handle Ff Ad		Appelez-nous	-
123	WR2X8009		Trim Handle Btm		Appelez-nous	-
124	WR12X722		Plug Button Insert Ad		Appelez-nous	-
125	WR12X912		Channel Handle Ff		Appelez-nous	-
127	WR71X2491		Shelf Front Ff Fl		Appelez-nous	-
150	WR1X1791		Screw		Appelez-nous	-
156	WR32X1321		Yoke Quick Store		Appelez-nous	-
157	WR32X1015		Bin Quick Store		Appelez-nous	-
158	WR38X1368		Trim Bright		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
910	WR78X8512		O.door Ff Ad		Appelez-nous	-
921	WR2X7625		Plug Button Ad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
