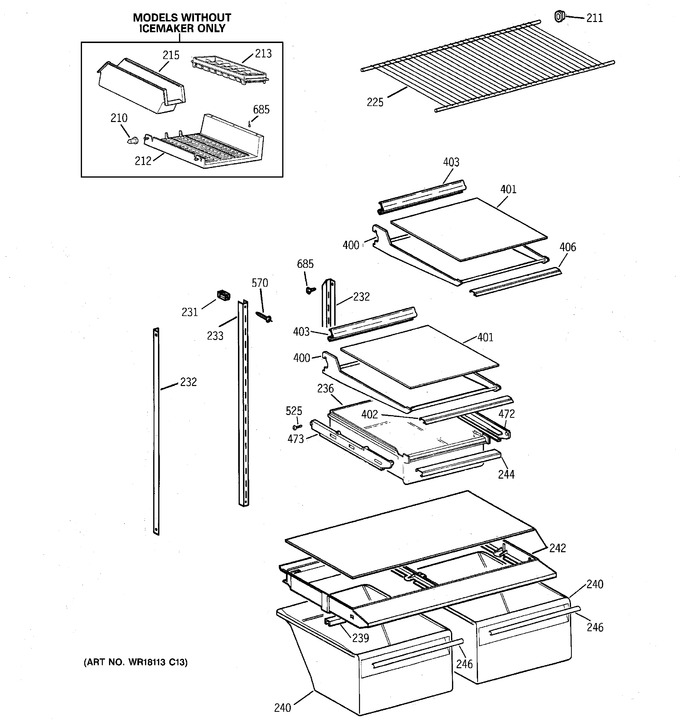

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
210	WR2X6261		Grommet Shelf Fz		Appelez-nous	-
211	WR01A00967		Support Shelf   (Replaces: WR2X7973)				$ 4.20
212	WR30X300		Shelf Ice Tray		Appelez-nous	-
213	WR30X311		Tray Ice		Appelez-nous	-
215	WR32X1560		Bucket Utility Wh		Appelez-nous	-
225	WR71X7644		Shelf Asm Fz Wire		Appelez-nous	-
231	WR2X7018		Spacer Track		Appelez-nous	-
232	WR72X96		Track Shelf Ff R/l		Appelez-nous	-
233	WR72X97		Track Center Ff		Appelez-nous	-
236	WR32X1073		Pan Meat (4")		Appelez-nous	-
239	WR17X2282		Support Rail Vp Cover		Appelez-nous	-
240	WR32X1326		Pan Twin Veg		Appelez-nous	-
242	WR32X10046		Cover Asm Veg Pan		Appelez-nous	-
242	WR32X10045		Shelf Glass Full		Appelez-nous	-
244	WR38X10113		Handle Pan		Appelez-nous	-
246	WR38X10097		Handle Veg Pan		Appelez-nous	-
400	WR71X2177		Shelf Cant		Appelez-nous	-
401	WR32X10047		Shelf Cant Glass Half		Appelez-nous	-
402	WR38X10127		Trim Glass Shelf Mp		Appelez-nous	-
403	WR38X10034		Reflector Glass Shelf		Appelez-nous	-
406	WR38X10112		Trim Glass Shelf		Appelez-nous	-
472	WR72X273		Slide Meat Pan Rh Wh		Appelez-nous	-
473	WR72X274		Slide Meat Pan Lh Wh		Appelez-nous	-
525	WR1X1763		Scr 8-18 T Wafer 5/8		Appelez-nous	-
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
