SELECT A DIAGRAM

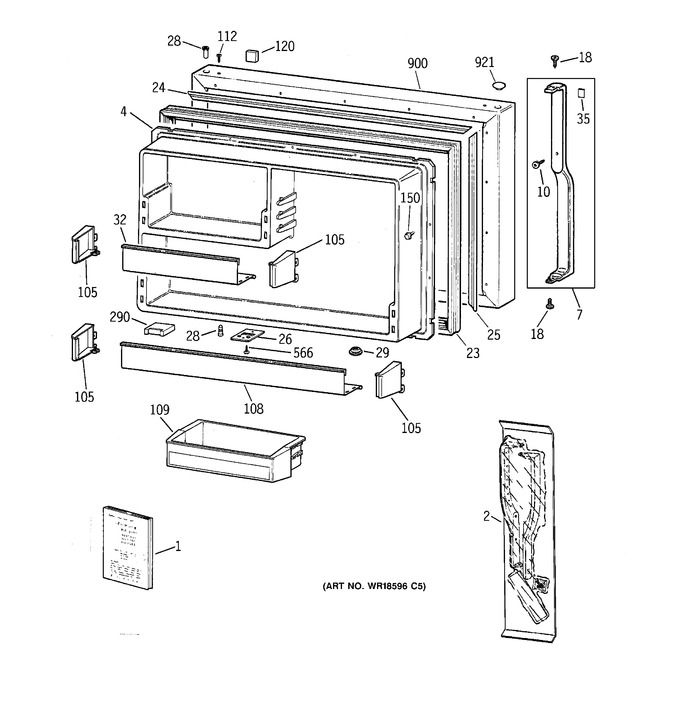

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-45884		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60034		Pm Guide Owners		Appelez-nous	-
2	WR12X10229		Pk Handle Asm Wh		Appelez-nous	-
4	WR77X613		Door Inner Fz Dp		Appelez-nous	-
7	WR12X10230		Handle Asm Fz Wh		Appelez-nous	-
10	WR1X2084		Screw		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
23	WR24X449		Gasket Door Fz Wh		Appelez-nous	-
24	WR17X2279		Retainer Strip H		Appelez-nous	-
25	WR17X2281		Retainer Strip V		Appelez-nous	-
26	WR2X9016		Stop Door		Appelez-nous	-
28	WR02X10111		Thimble Door Plastic		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
32	WR71X10129		Shelf Fronts Fz 1/2		Appelez-nous	-
35	WR04X10047		Lens Nameplate		Appelez-nous	-
105	WR2X8699		Cap Shelf Front Lh		Appelez-nous	-
105	WR2X8700		Cap Shelf Front Rh		Appelez-nous	-
108	WR71X10128		Shelf Fronts Fz Full		Appelez-nous	-
109	WR71X10130		Shelf Module Asm		Appelez-nous	-
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
120	WR04X10007		Lens Nameplate		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
290	WR02X10095		Magnet Pad		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
900	WR78X8731		Door Outer Fz Dp Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-
