SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelves & Drawers


5 - Compartment Separator Parts


6 - Unit Parts

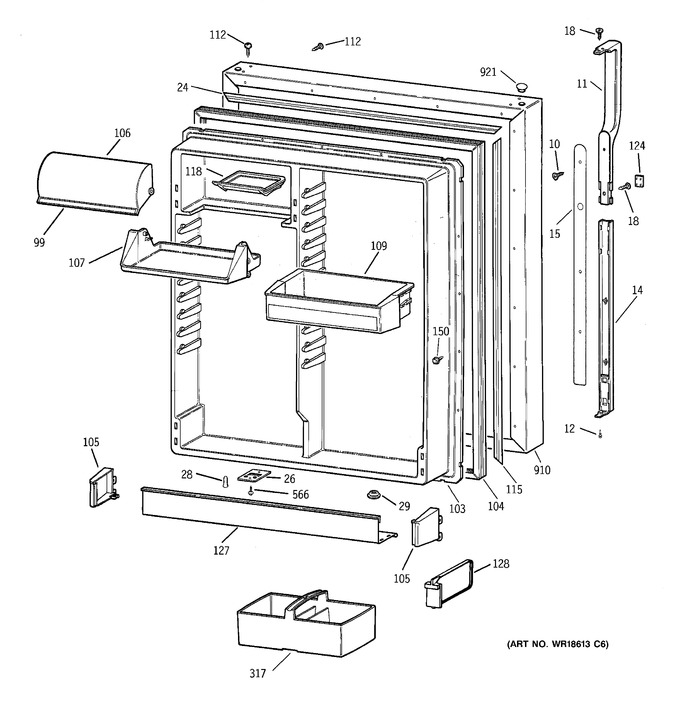

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR1X2084		Screw		Appelez-nous	-
11	WR12X10173		Handle Door Asm Ff Wh		Appelez-nous	-
12	WR01X10036		Scr 10-14 Pl Pnp 3/4 Szn		Appelez-nous	-
14	WR12X10174		Tail Handle Ff Wh		Appelez-nous	-
14	WR12X10248		Tail & Bracket Asm		Appelez-nous	-
15	WR12X10170		Trim Handle Ff		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
24	WR17X2279		Retainer Strip H		Appelez-nous	-
26	WR2X9016		Stop Door		Appelez-nous	-
28	WR02X10111		Thimble Door Plastic		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
99	WR38X10118		Trim Bright		Appelez-nous	-
103	WR77X614		Door Inner Ff Dp		Appelez-nous	-
104	WR24X450		Gasket Door Ff Wh		Appelez-nous	-
105	WR2X8700		Cap Shelf Front Rh		Appelez-nous	-
105	WR2X8699		Cap Shelf Front Lh		Appelez-nous	-
106	WR22X519		Door Dairy (no Trim)		Appelez-nous	-
107	WR22X474		Extension Dairy		Appelez-nous	-
109	WR71X10130		Shelf Module Asm		Appelez-nous	-
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
115	WR17X2280		Retainer Strip V		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
124	WR12X10175		Plug Button Handle Wh		Appelez-nous	-
127	WR71X10127		Shelf Fronts Ff Full		Appelez-nous	-
128	WR2X7971		Snugger Module		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
317	WR02X10133		Caddy Condiment		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
910	WR78X8730		Door Outer Ff Dp Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
