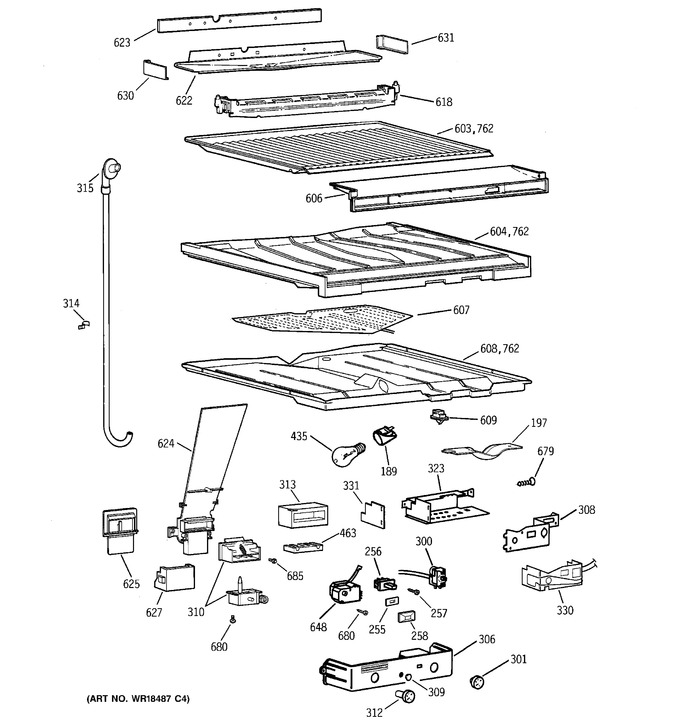

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelf Parts


5 - Separator Compartment Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
189	WR2X9014		Socket Term Asm		Appelez-nous	-
197	WR2X9013		Shield Light Ff		Appelez-nous	-
255	WR2X9152		Cover Switch		Appelez-nous	-
256	WR23X408		Switch Power Saver		Appelez-nous	-
257	WR1X1762		Scr 6-32 Ma Hxw 3/8		Appelez-nous	-
258	WR2X9369		Topper Switch		Appelez-nous	-
300	WR02X10031		Sleeve Vinyl		Appelez-nous	-
300	WR09X10004		Control Temp		Appelez-nous	-
301	WR02X10030		Knob Temp Cont		Appelez-nous	-
306	WR17X10632		Hsg Cont & Label Asm		Appelez-nous	-
308	WR2X7768		Bracket Control Hsg		Appelez-nous	-
309	WR2X7652		Plug Button		Appelez-nous	-
310	WR09X10023		Damper Control Asm		Appelez-nous	-
312	WR02X10029		Knob Control Ff		Appelez-nous	-
313	WR82X10014		Damper Insulation		Appelez-nous	-
314	WR2X8503		Clamp Tube		Appelez-nous	-
315	WR02X10134		Tube Drain Asm		Appelez-nous	-
323	WR2X7767		Brkt Control Back		Appelez-nous	-
330	WR51X10037		Heater Asm		Appelez-nous	-
331	WR02X10463		Insulation Barrier		Appelez-nous	-
435	WR23X442		Lamp 40w 240 V		Appelez-nous	-
463	WR82X338		Insulation Bellows		Appelez-nous	-
603	WR17X2138		Liner Btm Fz		Appelez-nous	-
604	WR17X3861		Insul Divider		Appelez-nous	-
606	WR17X2380		Front Liner Fz		Appelez-nous	-
607	WR51X10008		Heater Insul Asm Ff		Appelez-nous	-
608	WR17X10030		Liner Top Ff		Appelez-nous	-
609	WR23X359		Switch Light Wh		Appelez-nous	-
618	WR51X477		Htr Brkt Asm Def		Appelez-nous	-
622	WR17X2160		Trough Drain				$ 74.98
623	WR14X348		Gasket Trough		Appelez-nous	-
624	WR17X10633		Cover Ff Supply		Appelez-nous	-
624	WR14X10002		Seal Ff Supply		Appelez-nous	-
625	WR17X4059		Cover Duct Asm		Appelez-nous	-
627	WR82X10070		Nozzle Insulation		Appelez-nous	-
630	WR17X3694		Trough Ext Asm Lh		Appelez-nous	-
631	WR17X3695		Trough Ext Asm Rh		Appelez-nous	-
648	WR09X10003		Cont Defrost		Appelez-nous	-
679	WZ06X0133		Screw Brkt. Evap. Fan		Appelez-nous	-
680	WR01X10123		Scr 6-19 Hi/lo Hxw 1/2 S		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
762	WR14X313		Foam Strip		Appelez-nous	-
